Name: UV LED (270 - 425 nm)
Availability: InStock

UV LED (270 - 425 nm)

⠀⠀⠀⠀⠀⠀⠀⠀⠀

Features

- Peak wavelength 275 nm

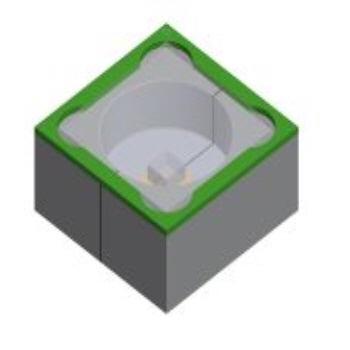

- Aluminum SMT package

- Radiant power typ. 10.5 mW

- ESD protection diode

Applications

- Disinfection

- Sterilization

- Spectroscopy

Product	Typ. Wavelength	Typ. Brightness	Measurement Current	LED Size	Radiation Angle	Data Sheet
LA KM120U8F	275 nm	11 mW	100 mA	3.5 mm	125 °	☞
LA KL120U8F	275 nm	4 mW	20 mA	3.5 mm	125 °	☞
LA KH120U8F	275 nm	105 mW	300 mA	6 mm	125 °	☞
LA KE120U8F	275 nm	1100 mW	5000 mA	18 mm	105 °	☞
LA KP120U8F	275 nm	45 mW	200 mA	6 mm	135 °	☞
LA KG120U8F	275 nm	250 mW	300 mA	9 mm	105 °	☞
LA KE120UYG	365 nm	950 mW	700 mA	3.5 mm	115 °	☞
LA AT020UYG	367 nm	7000 mW	1000 mA	32 x 23 mm	20 °	☞
LA KE120UXG	395 nm	1000 mW	700 mA	3.5 mm	115 °	☞
