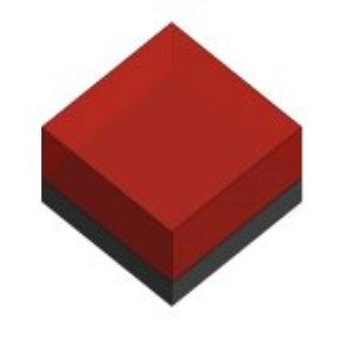

HYPER RED LED CHIPS
⠀⠀⠀⠀⠀⠀⠀⠀⠀
Features
- Highest brightness AlInGaP chip
- Top emitting device
- 20 micrometer emission window diameter
- No bondwire in the optical light path
Applications
- Industrial electronics
- Photocouplers
- Sensors
| Product | Typ. Wavelength | Typ. Brightness | Measurement Current | Size | Typ. Chip Height | Polarity | Data Sheet |
| LA HR020EP1 | 650 nm | 50 µW | 5 mA | 220 µm | 200 µm | p side up | ☞ |
| LA HR030EP1 | 650 nm | 50 µW | 5 mA | 220 µm | 200 µm | p side up | ☞ |
| LA HR040EP1 | 650 nm | 100 µW | 5 mA | 220 µm | 200 µm | p side up | ☞ |
| LA HR050EP1 | 650 nm | 250 µW | 10 mA | 220 µm | 200 µm | p side up | ☞ |
| LA HR070EP1 | 650 nm | 1250 µW | 20 mA | 220 µm | 200 µm | p side up | ☞ |
| LA HR40WP5 | 660 nm | 250 mW | 400 mA | 1100 µm | 190 µm | n side up | ☞ |
| LA HR09WP3 | 660 nm | 9 mW | 20 mA | 240 µm | 190 µm | n side up | ☞ |
| LA HR20WP3 | 660 nm | 12 mW | 20 mA | 500 µm | 190 µm | n side up | ☞ |
| LA HR12WP5 | 660 nm | 30 mW | 50 mA | 300 µm | 190 µm | n side up | ☞ |
| LA HR13HP1 | 660 nm | 15 mW | 20 mA | 325 µm | 270 µm | n+p side up | ☞ |
| LA HR43WP3 | 660 nm | 250 mW | 350 mA | 1080 µm | 190 µm | n side up | ☞ |
