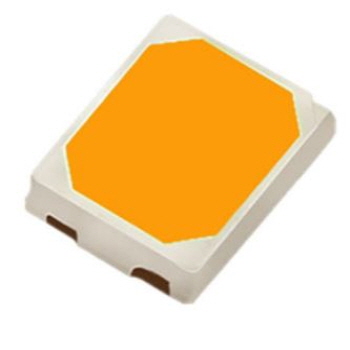

RED ORANGE LED CHIPS (610 - 625 nm)
⠀⠀⠀⠀⠀⠀⠀⠀⠀
Features
- Highest brightness AlInGaP chip
- Top emitting device
- Lambertian radiation
- Optimized for SMT applications
- Grouping: luminous intensity, wavelength
Applications
- Solid state lighting
- LCD backlighting
- Lamps
- Displays
- Light indicators
| Product | Typ. Wavelength | Typ. Brightness | Measurement Current | Size | Typ. Chip Height | Polarity | Data Sheet |
| LA RO09WP3 | 617 nm | 450 mcd | 20 mA | 225 µm | 150 µm | n side up | ☞ |
| LA RO12WP3 | 617 nm | 450 mcd | 20 mA | 300 µm | 190 µm | n side up | ☞ |
| LA RO20WP3 | 617 nm | 4000 mcd | 140 mA | 500 µm | 190 µm | n side up | ☞ |
| LA RO28WP3 | 617 nm | 10000 mcd | 400 mA | 700 µm | 190 µm | n side up | ☞ |
| LA RO28WP5 | 617 nm | 12500 mcd | 400 mA | 700 µm | 190 µm | n side up | ☞ |
| LA RO40WP3 | 617 nm | 10000 mcd | 400 mA | 1000 µm | 190 µm | n side up | ☞ |
| LA RO09WP5 | 617 nm | 450 mcd | 20 mA | 225 µm | 150 µm | n side up | ☞ |
| LA RO40WP5 | 617 nm | 16000 mcd | 400 mA | 1000 µm | 190 µm | n side up | ☞ |
| LA RO60SP3 | 617 nm | 25000 mcd | 1000 mA | 1590 µm | 190 µm | n side up | ☞ |
| LA RO12WP5 | 617 nm | 450 mcd | 20 mA | 300 µm | 190 µm | n side up | ☞ |
| LA RO20WP5 | 617 nm | 4000 mcd | 140 mA | 500 µm | 190 µm | n side up | ☞ |
| LA RO46WP6 | 617 nm | 32000 mcd | 1000 mA | 1170 µm | 120 µm | n side up | ☞ |
| Product | Typ. Wavelength | Typ. Brightness | Measurement Current | Size | Typ. Chip Height | Polarity | Data Sheet |
| LA RO09WP3 | 617 nm | 450 mcd | 20 mA | 225 µm | 150 µm | n side up | ☞ |
| LA RO12WP3 | 617 nm | 450 mcd | 20 mA | 300 µm | 190 µm | n side up | ☞ |
| LA RO20WP3 | 617 nm | 4000 mcd | 140 mA | 500 µm | 190 µm | n side up | ☞ |
| LA RO28WP3 | 617 nm | 10000 mcd | 400 mA | 700 µm | 190 µm | n side up | ☞ |
| LA RO28WP5 | 617 nm | 12500 mcd | 400 mA | 700 µm | 190 µm | n side up | ☞ |
| LA RO40WP3 | 617 nm | 10000 mcd | 400 mA | 1000 µm | 190 µm | n side up | ☞ |
| LA RO09WP5 | 617 nm | 450 mcd | 20 mA | 225 µm | 150 µm | n side up | ☞ |
| LA RO40WP5 | 617 nm | 16000 mcd | 400 mA | 1000 µm | 190 µm | n side up | ☞ |
| LA RO60SP3 | 617 nm | 25000 mcd | 1000 mA | 1590 µm | 190 µm | n side up | ☞ |
| LA RO12WP5 | 617 nm | 450 mcd | 20 mA | 300 µm | 190 µm | n side up | ☞ |
| LA RO20WP5 | 617 nm | 4000 mcd | 140 mA | 500 µm | 190 µm | n side up | ☞ |
| LA RO46WP6 | 617 nm | 32000 mcd | 1000 mA | 1170 µm | 120 µm | n side up | ☞ |
