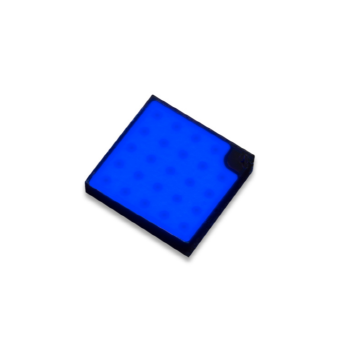

CYAN LED CHIPS (475 - 515 nm)
⠀⠀⠀⠀⠀⠀⠀⠀⠀
Features
- Highest brightness InGaN chip
- Substrate SiC
- Grouping: Radiant power, wavelength
- Flip Chip
Applications
- Displays
- Sensor
- Solid state lighting
| Product | Typ. Wavelength | Typ. Brightness | Measurement Current | Size | Typ. Chip Height | Polarity | Data Sheet |
| LA TB20FP1 | 480 nm | 210 mW | 150 mA | 500 µm | 250 µm | n+p side down | ☞ |
| LA TB37WP6 | 480 nm | 450 mW | 350 mA | 930 µm | 170 µm | p side up | ☞ |
| LA TB18FP1 | 480 nm | 80 mW | 50 mA | 470 µm | 155 µm | n+p side down | ☞ |
| LA CB37WP6 | 490 nm | 450 mW | 350 mA | 930 µm | 170 µm | p side up | ☞ |
| LA CB45NP1 | 490 nm | 400 mW | 350 mA | 1140 µm | 150 µm | n side up | ☞ |
| LA CB20NP1 | 490 nm | 40 mW | 60 mA | 500 µm | 150 µm | n side up | ☞ |
| LA CB40WP6 | 490 nm | 28000 mcd | 350 mA | 1000 µm | 120 µm | p side up | ☞ |
| LA CB43FP6 | 490 nm | 120000 mlm | 700 mA | 1075 µm | 120 µm | n+p side down | ☞ |
| LA HG40WP6 | 505 nm | 40000 mcd | 350 mA | 1000 µm | 120 µm | p side up | ☞ |
| LA HG12WP4 | 505 nm | 1000 mcd | 20 mA | 280 µm | 190 µm | n side up | ☞ |
| LA HG40WP4 | 505 nm | 25000 mcd | 350 mA | 1000 µm | 190 µm | n side up | ☞ |
| LA HG13WP6 | 505 nm | 1800 mcd | 20 mA | 335 µm | 120 µm | p side up | ☞ |
