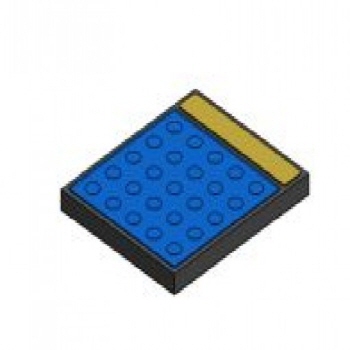

BLUE LED CHIPS (425 - 475 nm)
⠀⠀⠀⠀⠀⠀⠀⠀⠀
Features
- Highest brightness InGaN chip
- Top emitting device
- Lambertian radiation
- Optimized for SMT applications
- Grouping: luminous intensity, wavelength
Applications
- Solid state lighting
- LCD backlighting
- Lamps
- Displays
- Light indicators
| Product | Typ. Wavelength | Typ. Brightness | Measurement Current | Size | Typ. Chip Height | Polarity | Data Sheet |
| LA EB47WP6 | 437 nm | 1600 mW | 1000 mA | 1185 µm | 120 µm | p side up | ☞ |
| LA HB40WP6 | 450 nm | 600 mW | 350 mA | 1000 µm | 120 µm | p side up | ☞ |
| LA HB47WP6 | 450 nm | 1500 mW | 1000 mA | 1185 µm | 120 µm | p side up | ☞ |
| LA HB80WP4 | 450 nm | 1600 mW | 1000 mA | 2000 µm | 225 µm | p side up | ☞ |
| LA HB10WP4 | 450 nm | 25 mW | 20 mA | 260 µm | 120 µm | n side up | ☞ |
| LA HB12FP1 | 450 nm | 28 mW | 20 mA | 150 µm | 80 µm | n+p side down | ☞ |
| LA HB13FP1 | 450 nm | 37 mW | 20 mA | 320 µm | 140 µm | n+p side down | ☞ |
| LA HB43WP6 | 450 nm | 450 mW | 350 mA | 1080 µm | 170 µm | p side up | ☞ |
| LA HB40FP6 | 450 nm | 550 mW | 350 mA | 1075 µm | 120 µm | n+p side down | ☞ |
| LA HB11HP1 | 450 nm | 28 mW | 20 mA | 220 µm | 50 µm | n+p side up | ☞ |
| LA HB39WP4 | 450 nm | 450 mW | 350 mA | 980 µm | 170 µm | n side up | ☞ |
| LA HB11WP4 | 450 nm | 30 mW | 20 mA | 280 µm | 170 µm | n side up | ☞ |
| LA HB37WP6 | 450 nm | 600 mW | 350 mA | 930 µm | 170 µm | p side up | ☞ |
| LA HB12WP4 | 450 nm | 25 mW | 20 mA | 300 µm | 190 µm | n side up | ☞ |
| LA HB35HP1 | 450 nm | 160 mW | 120 mA | 890 µm | 150 µm | n+p side up | ☞ |
| LA HB43FP6 | 450 nm | 1100 mW | 700 mA | 1075 µm | 120 µm | n+p side down | ☞ |
| LA HB28WP6 | 450 nm | 550 mW | 350 mA | 720 µm | 120 µm | p side up | ☞ |
| LA HB20WP4 | 450 nm | 160 mW | 140 mA | 500 µm | 190 µm | n side up | ☞ |
| LA HB28WP4 | 450 nm | 400 mW | 350 mA | 730 µm | 190 µm | n side up | ☞ |
| LA HB25WP6 | 450 nm | 450 mW | 350 mA | 620 µm | 120 µm | p side up | ☞ |
| LA HB40WP4 | 450 nm | 450 mW | 350 mA | 1000 µm | 190 µm | n side up | ☞ |
| LA HB40WP5 | 450 nm | 550 mW | 350 mA | 1000 µm | 150 µm | p side up | ☞ |
| LA SB39WP4 | 460 nm | 400 mW | 350 mA | 980 µm | 170 µm | n side up | ☞ |
| LA SB12WP4 | 460 nm | 25 mW | 20 mA | 300 µm | 190 µm | n side up | ☞ |
| LA SB37WP6 | 460 nm | 500 mW | 350 mA | 930 µm | 170 µm | p side up | ☞ |
| LA SB12CP2 | 460 nm | 3 mW | 20 mA | 260 µm | 250 µm | p side up | ☞ |
| LA SB08CP3 | 460 nm | 2 mW | 20 mA | 200 µm | 215 µm | p side up | ☞ |
| LA SB11WP4 | 460 nm | 27 mW | 20 mA | 280 µm | 170 µm | n side up | ☞ |
| LA SB43WP6 | 460 nm | 640 mW | 350 mA | 1080 µm | 170 µm | p side up | ☞ |
| LA SB08CP2 | 460 nm | 2 mW | 20 mA | 200 µm | 250 µm | p side up | ☞ |
| LA SB11HP1 | 460 nm | 27 mW | 20 mA | 220 µm | 50 µm | n+p side up | ☞ |
| LA SB25WP6 | 460 nm | 450 mW | 350 mA | 620 µm | 120 µm | p side up | ☞ |
| LA SB13FP1 | 460 nm | 35 mW | 20 mA | 320 µm | 140 µm | n+p side down | ☞ |
| LA SB08WP4 | 460 nm | 8 mW | 10 mA | 190 µm | 120 µm | n side up | ☞ |
| LA SB10WP4 | 460 nm | 25 mW | 20 mA | 260 µm | 120 µm | n side up | ☞ |
| LA SB80WP4 | 460 nm | 1200 mW | 1000 mA | 2000 µm | 225 µm | n side up | ☞ |
| LA SB20WP4 | 460 nm | 160 mW | 140 mA | 500 µm | 190 µm | n side up | ☞ |
| LA SB60SP3 | 460 nm | 800 mW | 1000 mA | 1500 µm | 190 µm | n side up | ☞ |
| LA SB09WP3 | 460 nm | 8 mW | 10 mA | 230 µm | 190 µm | n side up | ☞ |
| LA SB45NP1 | 460 nm | 500 mW | 350 mA | 1140 µm | 150 µm | n side up | ☞ |
| LA SB40WP4 | 460 nm | 450 mW | 350 mA | 1000 µm | 190 µm | n side up | ☞ |
| LA SB47WP6 | 460 nm | 1400 mW | 1000 mA | 1185 µm | 120 µm | p side up | ☞ |
| LA SB28WP4 | 460 nm | 400 mW | 350 mA | 730 µm | 190 µm | n side up | ☞ |
| LA SB07NP1 | 460 nm | 4 mW | 5 mA | 180 µm | 75 µm | n side up | ☞ |
| LA SB12NP1 | 460 nm | 20 mW | 20 mA | 300 µm | 150 µm | n side up | ☞ |
| LA SB28WP6 | 460 nm | 550 mW | 350 mA | 720 µm | 120 µm | p side up | ☞ |
| LA SB40WP6 | 460 nm | 550 mW | 350 mA | 1000 µm | 120 µm | p side up | ☞ |
| LA SB40WP5 | 460 nm | 500 mW | 350 mA | 1000 µm | 150 µm | p side up | ☞ |
| LA UB20WP4 | 470 nm | 140 mW | 140 mA | 500 µm | 190 µm | n side up | ☞ |
| LA UB12CP2 | 470 nm | 3 mW | 20 mA | 260 µm | 250 µm | p side up | ☞ |
| LA UB12WP4 | 470 nm | 400 mcd | 20 mA | 300 µm | 190 µm | n side up | ☞ |
| LA UB08WP4 | 470 nm | 160 mcd | 10 mA | 190 µm | 120 µm | n side up | ☞ |
| LA UB09WP3 | 470 nm | 160 mcd | 10 mA | 230 µm | 190 µm | n side up | ☞ |
| LA UB18FP1 | 470 nm | 85 mW | 50 mA | 470 µm | 155 µm | n+p side down | ☞ |
| LA UB10WP4 | 470 nm | 350 mcd | 20 mA | 260 µm | 120 µm | n side up | ☞ |
| LA UB08CP3 | 470 nm | 2 mW | 20 mA | 200 µm | 215 µm | p side up | ☞ |
| LA UB08CP2 | 470 nm | 2 mW | 20 mA | 200 µm | 250 µm | p side up | ☞ |
| LA UB06CP4 | 470 nm | 1 mW | 5 mA | 135 µm | 95 µm | n side up | ☞ |
| LA UB12FP1 | 470 nm | 24 mW | 20 mA | 150 µm | 80 µm | n+p side down | ☞ |
| LA UB20WP3 | 470 nm | 125 mW | 140 mA | 500 µm | 190 µm | n side up | ☞ |
| LA UB28WP4 | 470 nm | 350 mW | 350 mA | 730 µm | 190 µm | n side up | ☞ |
| LA UB40WP4 | 470 nm | 450 mW | 350 mA | 1000 µm | 190 µm | n side up | ☞ |
| LA UB20FP1 | 470 nm | 230 mW | 150 mA | 500 µm | 250 µm | n+p side down | ☞ |
| LA UB13FP1 | 470 nm | 33 mW | 20 mA | 320 µm | 140 µm | n+p side down | ☞ |
| LA UB13WP6 | 470 nm | 550 mcd | 20 mA | 335 µm | 120 µm | p side up | ☞ |
| LA UB11HP1 | 470 nm | 25 mW | 20 mA | 220 µm | 50 µm | n+p side up | ☞ |
| LA UB39WP4 | 470 nm | 400 mW | 350 mA | 980 µm | 170 µm | n side up | ☞ |
| LA UB11WP4 | 470 nm | 24 mW | 20 mA | 280 µm | 170 µm | n side up | ☞ |
| LA UB12NP1 | 470 nm | 250 mcd | 20 mA | 300 µm | 150 µm | n side up | ☞ |
| LA UB07NP1 | 470 nm | 70 mcd | 5 mA | 180 µm | 75 µm | n side up | ☞ |
| LA UB37WP6 | 470 nm | 460 mW | 350 mA | 930 µm | 170 µm | p side up | ☞ |
| LA UB40WP5 | 470 nm | 450 mW | 350 mA | 1000 µm | 150 µm | p side up | ☞ |
