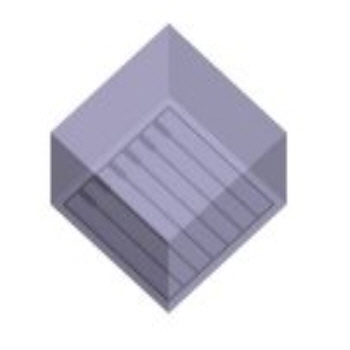

UV LED CHIPS (260 - 425 nm)
⠀⠀⠀⠀⠀⠀⠀⠀⠀
Features
- AlGaN base flip type LED chip
- Transparent sapphire substrate
- RoHS Compliant
Applications
- Medical and analytic instrumentation
- UV curing
- Medical
- Sterilization
| Product | Typ. Wavelength | Typ. Brightness | Measurement Current | Size | Typ. Chip Height | Polarity | Data Sheet |
| LA UZ226P3 | 265 nm | 14 mW | 100 mA | 550 µm | 400 µm | n+p side down | ☞ |
| LA UZ486P3 | 265 nm | 43 mW | 350 mA | 1220 µm | 400 µm | n+p side down | ☞ |
| LA UZ207P2 | 275 nm | 5 mW | 40 mA | 500 µm | 420 µm | n+p side down | ☞ |
| LA UZ487P3 | 275 nm | 11 mW | 350 mA | 1220 µm | 400 µm | n+p side down | ☞ |
| LA UZ427P2 | 275 nm | 30 mW | 350 mA | 1060 µm | 420 µm | n+p side down | ☞ |
| LA UZ307P2 | 275 nm | 18 mW | 100 mA | 750 µm | 420 µm | n+p side down | ☞ |
| LA UZ107P2 | 275 nm | 3 mW | 20 mA | 500 µm | 250 µm | n+p side down | ☞ |
| LA UZ481P3 | 310 nm | 50 mW | 350 mA | 1220 µm | 400 µm | n+p side down | ☞ |
| LA UZ221P3 | 310 nm | 15 mW | 100 mA | 550 µm | 400 µm | n+p side down | ☞ |
| LA UZ401P1 | 310 nm | 50 mW | 350 mA | 1000 µm | 430 µm | n+p side down | ☞ |
| LA UZ403P1 | 325 nm | 45 mW | 350 mA | 1000 µm | 430 µm | n+p side down | ☞ |
| LA UZ204P1 | 340 nm | 7 mW | 50 mA | 500 µm | 430 µm | n+p side down | ☞ |
| LA UZ404P1 | 340 nm | 45 mW | 350 mA | 1000 µm | 430 µm | n+p side down | ☞ |
| LA UY45WP3 | 367 nm | 700 mW | 500 mA | 1145 µm | 180 µm | p side up | ☞ |
| LA UY46WP3 | 367 nm | 880 mW | 500 mA | 1145 µm | 180 µm | p side up | ☞ |
| LA UY43WP2 | 367 nm | 500 mW | 500 mA | 1100 µm | 130 µm | p side up | ☞ |
| LA UY42WP1 | 367 nm | 700 mW | 500 mA | 1100 µm | 110 µm | n side up | ☞ |
| LA UY20WP1 | 367 nm | 100 mW | 50 mA | 500 µm | 110 µm | n side up | ☞ |
| LA UX42WP1 | 395 nm | 950 mW | 500 mA | 1050 µm | 110 µm | n side up | ☞ |
| LA UX43WP2 | 395 nm | 850 mW | 500 mA | 1100 µm | 130 µm | p side up | ☞ |
| LA UX45WP3 | 395 nm | 1040 mW | 500 mA | 1145 µm | 180 µm | p side up | ☞ |
| LA UX46WP3 | 395 nm | 1080 mW | 500 mA | 1145 µm | 180 µm | p side up | ☞ |
| LA UX20WP1 | 395 nm | 140 mW | 50 mA | 500 µm | 110 µm | n side up | ☞ |
| LA UX47WP6 | 395 nm | 1500 mW | 1000 mA | 1185 µm | 120 µm | p side up | ☞ |
| LA UX20AP1 | 405 nm | 110 mW | 20 mA | 390 µm | 200 µm | n+p side up | ☞ |
| LA UX14AP1 | 405 nm | 20 mW | 20 mA | 350 µm | 140 µm | n+p side up | ☞ |
| LA UV43WP2 | 415 nm | 640 mW | 500 mA | 1100 µm | 130 µm | p side up | ☞ |
