LT-0100 POF - Plastic Fibre Optics
⠀⠀⠀⠀⠀⠀⠀⠀⠀
Keywords:
- Plastic Fibre Handling
- LED Transmitter
- Si Photodetector Receiver
- Dichroic Beam Splitter
- LED Modulation
- Fibre Y Coupler
- Data Transmission
- Losses in Plastic Fibre
Basic experiment
Intended institutions and users:
Physics Laboratory
Engineering department
Electronic department
Biophotonics department
Physics education in Medicine
LT-0100 POF - Plastic Fibre Optics
plastic fibre is an equivalent to optical multi mode glass fibres. Whereas glass fibre are used for long distance and high speed data transmission, plastic fibres are commonly used for local area networks for data and signal transmission. Nowadays the transmission losses with 12 dB / 50 m of these fibres are significantly higher than those of the glass fibres. A lot of effort is undertaken to remove this disadvantage, since the manufacturing and installation costs of plastic fibres are comparably low. For signal transfer at short distances optical plastic fibre play an important role. Especially in harsh environments for example high voltage power stations, signal transfer via light and plastic fibre can be performed almost free of noise. The light transfer in all plastic fibres (APF) is achieved by using a plastic core which is coated with a material to obtain a step index profile. Typical diameters are 1 mm for the core which simplifies the coupling of light compared to glass fibres significantly. Also the preparation process, the cutting of the fibre can be done with a simple cutter blade instead of using special cleaving tools as it is the case for glass fibres.

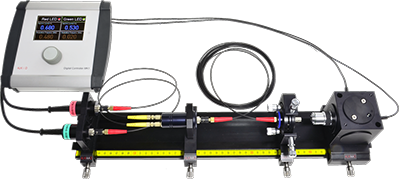

The goal of this experimental system is to teach and train the handling with and the signal transmission via optical plastic fibre. As transmitter a green and red LED is used to demonstrate independent dual wavelength data transmission in a single fibre. The radiation of the LED is coupled by means of a Y coupler into the fibre. The light at the exit of the fibre passes a dichroic beam splitter plate which is coated in such a way that the green radiation will be totally reflected whereas the red radiation is transmitted. Two photo detectors convert the light signal into electrical signals which are amplified by the receiver module and can be either displayed on a two channel oscilloscope for further investigation or connected to two loudspeakers provided. The transmitter unit contains two independent drivers for both the LED as well as internal modulators. Other signal sources can be connected directly.
Datasheet
https://luhs.de/assets/lt-0100.pdf
LT-0100 POF - Plastic Fibre Optics
plastic fibre is an equivalent to optical multi mode glass fibres. Whereas glass fibre are used for long distance and high speed data transmission, plastic fibres are commonly used for local area networks for data and signal transmission. Nowadays the transmission losses with 12 dB / 50 m of these fibres are significantly higher than those of the glass fibres. A lot of effort is undertaken to remove this disadvantage, since the manufacturing and installation costs of plastic fibres are comparably low. For signal transfer at short distances optical plastic fibre play an important role. Especially in harsh environments for example high voltage power stations, signal transfer via light and plastic fibre can be performed almost free of noise. The light transfer in all plastic fibres (APF) is achieved by using a plastic core which is coated with a material to obtain a step index profile. Typical diameters are 1 mm for the core which simplifies the coupling of light compared to glass fibres significantly. Also the preparation process, the cutting of the fibre can be done with a simple cutter blade instead of using special cleaving tools as it is the case for glass fibres.

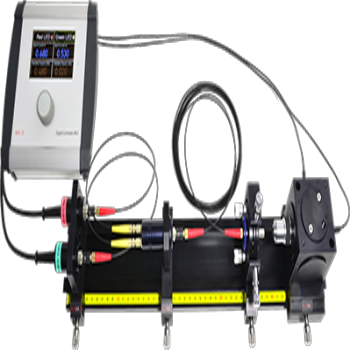

The goal of this experimental system is to teach and train the handling with and the signal transmission via optical plastic fibre. As transmitter a green and red LED is used to demonstrate independent dual wavelength data transmission in a single fibre. The radiation of the LED is coupled by means of a Y coupler into the fibre. The light at the exit of the fibre passes a dichroic beam splitter plate which is coated in such a way that the green radiation will be totally reflected whereas the red radiation is transmitted. Two photo detectors convert the light signal into electrical signals which are amplified by the receiver module and can be either displayed on a two channel oscilloscope for further investigation or connected to two loudspeakers provided. The transmitter unit contains two independent drivers for both the LED as well as internal modulators. Other signal sources can be connected directly.
