LM-0800 Bar Code Reader
⠀⠀⠀⠀⠀⠀⠀⠀⠀
Keywords:
- Types of Bar codes
- Visible Diode Laser
- Rotating Polygon Mirror
- Scanning Algorithm
- Bar code Detection
- Bar code Recognition
- Photodetector
- Computer Integration
Basic experiment
Intended institutions and users:
Physics Laboratory
Engineering department
Electronic department
Photonics Labs

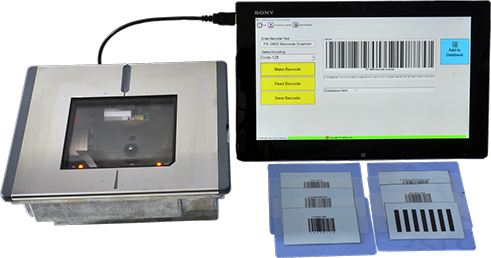

LM-0800 Bar Code Reader
The development of the bar code reader principle goes back to 1948 when Bernard Silver, a graduate student at Drexel Institute of Technology in Philadelphia overheard a conversation between the president of the local food chain and one of the deans. The president asks to research on a system which can automatically read product information during checkout. Silver told his friend Norman Joseph Woodland about the request, and they started working on a variety of systems. The basic idea was to use an optical device which responds to light/dark transition of the a code. Although the idea was born in 1948 it took another 26 years before bar codes became commercially successful for automate supermarket checkout systems.
The very first scanning of the now ubiquitous Universal Product Code (UPC) bar code was on a pack of Wrigley Company chewing gum in June 1974. The breakthrough became only possible due to the invention of the laser, especially the Helium Neon laser emitting a visible and continuous red beam. The use of laser light with optical and mechanical scanner made it possible to read the bar code under nearly all directions of observation which is written on an object. Another key component for the success of the bar code reader has been the upcoming computer. Once the scanned information is present as a modulated electronic signal, it has to be decoded, stored and displayed. After the successful and useful implementation in supermarkets the idea of bar code identification was used for postal application, tagging of patients in medical treatments, luggage tagging in air transportation and a lot more. This experiment makes use of a modified regular cash desk scanner to introduce this exciting technology. All major components are made accessible like the rotating polygon mirror, beam distribution mirror and receiver optics. The analogue optical signal is tapped and made available via external buffer amplifier to be displayed on an oscilloscope. A set of different enlarged bar codes are used to track the chain from the analogue to the digital signal conversion. By means of a set of black beam blocker the beam bender mirror are blinded to obtain only one scanning line to facilitate the interpretation of the optical signal. The scanner is connected via its USB bus to a computer where the received code is encoded and displayed. The software uses an attached database to identify already known scanned object or store newly scanned ones. A variety of own bar codes can be created and if required printed to own labels.
Datasheet
https://luhs.de/assets/lm-0800.pdf

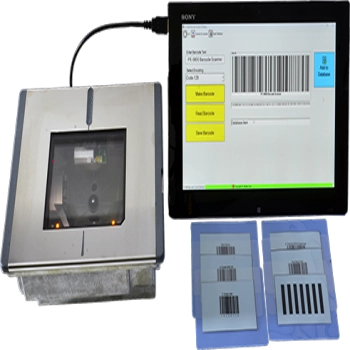

LM-0800 Bar Code Reader
