LM-0700 Laser safety
⠀⠀⠀⠀⠀⠀⠀⠀⠀
Keywords:
IEC 60825 or ANSI Z136
Laser Safety Regulations
Laser Beam Divergence
Laser Intensity
Max. Permissible Radiation
Safety Distance
Damaging Effects
Laser Classification
Safety Goggles
Pulsed Laser
Basic experiment
Intended institutions and users:
Physics Laboratory
Engineering department
Electronic department
Biophotonics department
Physics education in Medicine

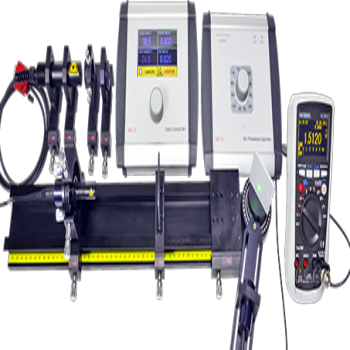

LM-0700 Laser safety
In this experiment the students are encouraged to convert the essential theoretical contents regarding „Laser Safety“ into practice. The application and use of the basics in calculation defined within the standards is submitted and trained by means of practical examples. The major measurement task is to determine the intensity of a laser beam which is defined as power per cross section typically given in W/m². The power is measured by using a calibrated power meter. The cross section and the divergence is determined by a set of imaging lenses with known focal lengths. In addition to the direct exposition also the danger of scattered light is classified by using a scatter probe mounted on a pivot arm.
The experiment is divided into several segments. Aspects such as the following ones have been considered:
1. Determination of the maximum permissible radiation (MPR) for skin and eyes
2. Minimum safety distance from a radiation source for direct and indirect irradiation of the skin and the eyes, (MSD)
3. Characterisation of a pulsed laser systems
4. Requirements for laser safety googles, transmission of optical filter
The fundamentals of IEC 60825 or ANSI Z136 or corresponding literature of laser safety should be known. The danger of lasers are understood by the characteristic properties of the laser radiation. In comparison with other light sources a high energy and power density can be attained, because of the generally small beam divergence the radiation density can be very high even at large distances from the laser (potential danger of lasers used in metrology). Not only the direct radiation also reflected and scattered radiation can cause damage at a large distance from the radiation source. Laser radiation can be generated within a broad spectral range. It extends from a few nanometre up to some hundred micrometres and is, in many cases, outside of the visible spectrum. The damage of the biological tissue (skin, eye) depends strongly on the wavelength and on the duration of the exposition. This is of great importance under safety aspects when classifying the lasers and fixing radiation limits which is also subject of this experiment. By means of two different laser sources all parameters are measured in order to classify each laser and to determine the limits for which the laser can be considered as save. This includes also the characterisation of laser safety goggles.
Datasheet
https://luhs.de/assets/lm-0700.pdf

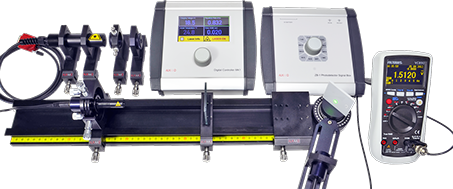

LM-0700 Laser safety
