LM-0140 CNC Calibration Extension
⠀⠀⠀⠀⠀⠀⠀⠀⠀
Keywords:
Definition of Length
HeNe-Laser
Two Beam Interference
Homodyne Interferometer
Fringe Detection and Counting
Interpolation of Interference Fringes
Computer controlled stepper motor
Calibration of Translation Stage
Basic experiment
Intended institutions and users:
Physics Laboratory
Engineering department
Electronic department
Biophotonics department
Physics education in Medicine

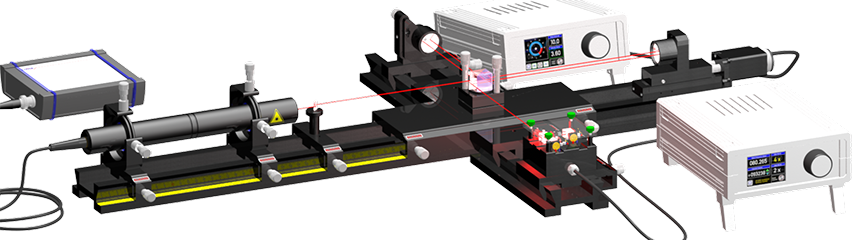

LM-0140 CNC Calibration Extension
Measuring a length is the comparison of an unknown length with a known one. Since 1983 the standard of one meter is defined as the length of the path travelled by light in vacuum during a time interval of 1/299792458 of a second. The effect of this definition is to fix the speed of light (c) in vacuum at exactly 299 792 458 m/s. If we consider the relation ν=c/λ where ν denotes the frequency and λ the wavelength of the light radiation it becomes clear that in case the frequency of the radiation is known the wavelength λ is known as well. If the used light source has a known and constant frequency it represents a secondary standard of the meter. Preferentially a laser can fulfil the demand of a defined and stable frequency. In practise HeNe-Laser systems are used which frequency is stabilised using optical transitions of the Iodine 127 isotope. The uncertainty of the frequency stabilisation by using this method is better than 1x10E-12. For technical applications like calibrating CNC machines an uncertainty of 1x10E-7 is sufficient. This value corresponds to an accuracy of 0.1 µm per one meter. A HeNe-Laser without any frequency stabilisation means has a fairly good uncertainty of 1x10E-6 and will be used in this experiment. By using the Michelson interferometer we count how many λ/2 bright/dark transition (fringe) occur along the distance to be measured. The movement will be done by using a computer controlled motorised translation stage with built-in incremental encoder. The travelled distance is compared with the result of the Michelson interferometer which represents the standard of the meter.
Datasheet
https://luhs.de/assets/lm-0140.pdf
LM-0140 CNC Calibration Extension
Measuring a length is the comparison of an unknown length with a known one. Since 1983 the standard of one meter is defined as the length of the path travelled by light in vacuum during a time interval of 1/299792458 of a second. The effect of this definition is to fix the speed of light (c) in vacuum at exactly 299 792 458 m/s. If we consider the relation ν=c/λ where ν denotes the frequency and λ the wavelength of the light radiation it becomes clear that in case the frequency of the radiation is known the wavelength λ is known as well. If the used light source has a known and constant frequency it represents a secondary standard of the meter. Preferentially a laser can fulfil the demand of a defined and stable frequency. In practise HeNe-Laser systems are used which frequency is stabilised using optical transitions of the Iodine 127 isotope. The uncertainty of the frequency stabilisation by using this method is better than 1x10E-12. For technical applications like calibrating CNC machines an uncertainty of 1x10E-7 is sufficient. This value corresponds to an accuracy of 0.1 µm per one meter. A HeNe-Laser without any frequency stabilisation means has a fairly good uncertainty of 1x10E-6 and will be used in this experiment. By using the Michelson interferometer we count how many λ/2 bright/dark transition (fringe) occur along the distance to be measured. The movement will be done by using a computer controlled motorised translation stage with built-in incremental encoder. The travelled distance is compared with the result of the Michelson interferometer which represents the standard of the meter.
