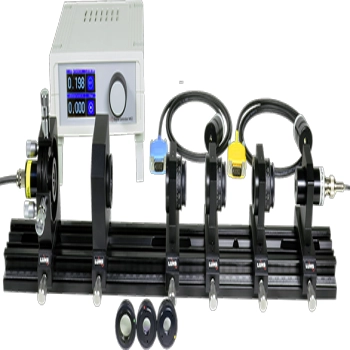

PE-0200 Polarisation of Light
⠀⠀⠀⠀⠀⠀⠀⠀⠀
Optical Activity
Double Refraction
Polarization of Light Sources
Linear Polarized Light
Elliptical, Circular Polarized Light
LED Light Source
Green Laser
Quartz Retarder Plate
Mica Retarder Plate
Photodetector
Light Power Control
Malus’ Law
Basic experiment
Intended institutions and users:
Physics Laboratory
Engineering department
Electronic department
Biophotonics department
Physics education in Medicine
PE-0200 Polarisation of Light
In the year 1809, Etienne Malus discovered the polarization of light by reflection and stated a law which describes the intensity distribution of polarized light as a function of the relative orientation of a polarization analyser. At that time his findings were in contradiction to the presumption of light waves being longitudinal rather than transversal. His discovery had far reaching consequences for the wave theory of light, and his unambiguous experimental results launched a big debate, among the leading scientists about the wave properties of light. Finally, as a compromise light was conceded to have transversal as well as longitudinal character. Two years later Dominique Arago investigated a sample of quartz and discovered its optical activity, a property of many natural and also synthetic materials. Later on, Augustine Fresnel could explain the effect of optical active materials on light by introducing the phenomenon of circular birefringence. In this series of experiments the polarization state of the light sources in use is determined. Furthermore, polarized light is used to prove the Malus’ and Fresnel’s Laws with respect to their states on polarization. The influence of crystal wave plates and optically active materials on polarization is studied.
Datasheet
https://luhs.de/assets/pe-0200.pdf
Manual
https://luhs.de/assets/um-pe02.pdf
