Cobolt 04-01 Series
⠀⠀⠀⠀⠀⠀⠀⠀⠀
- 457 nm – 1064 nm, CW up to 400 mW
- Linewidth < 1 MHz
- TEM00 beam
- Low noise, <0.25% rms
- Wavelength stability <1 pm (over ± 2 °C and 8 hrs)
- Optional integrated modulation up to 3MHz
- Fiber pigtailed option
- Ultra-robust, hermetically sealed packages, proven reliability
- Up to 24 months warranty, unlimited hours

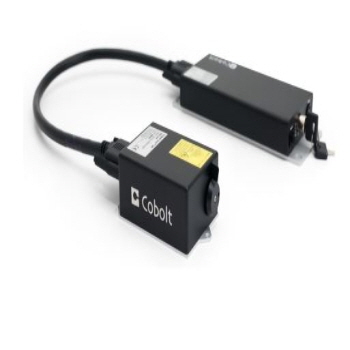

Cobolt 04-01 Series
Single frequency, CW diode pumped lasers
The Cobolt 04-01 Series lasers are continuous-wave diode-pumped lasers (DPL) operating at a fixed wavelength between 457 nm and 1064 nm. Single frequency operation provides an ultra
narrow spectral linewidth, long coherence length and excellent spectral purity. The lasers are designed and manufactured to ensure a high level of reliability.
- 457 nm – 1064 nm, CW up to 400 mW
- Linewidth < 1 MHz
- TEM00 beam
- Low noise, <0.25% rms
- Wavelength stability <1 pm (over ± 2 °C and 8 hrs)
- Optional integrated modulation up to 3MHz
- Fiber pigtailed option
- Ultra-robust, hermetically sealed packages, proven reliability
- Up to 24 months warranty, unlimited hours
Applications
Perfect for interferometry, Raman, holography, microscopy.
Specifications
| Product | Wavelength | Power | Fiber pigtailed option | Modulated option |
| Cobolt Twist™ | 457 nm | ≤ 50 mW | - | ≤ 40 mW |
| Cobolt Blues™ | 473 nm | ≤ 50 mW | ≤ 35 mW | ≤ 40 mW |
| Cobolt Calypso™ | 491 nm | ≤ 100 mW | ≤ 100 mW | ≤ 80 mW |
| Cobolt Fandango™ | 515 nm | ≤ 150 mW | ≤ 100 mW | ≤ 120 mW |
| Cobolt Samba™ | 532 nm | ≤ 400 mW | ≤ 150 mW | ≤ 240 mW |
| Cobolt Jive™ | 561 nm | ≤ 200 mW | ≤ 100 mW | ≤ 120 mW |
| Cobolt Mambo™ | 594 nm | ≤ 100 mW | ≤ 75 mW | ≤ 80 mW |
| Cobolt Flamenco™ | 660 nm | ≤ 100 mW | - | ≤ 80 mW |
| Cobolt Rumba™ | 1064 nm | ≤ 400 mW | - | - |
Cobolt 04-01 Series
Single frequency, CW diode pumped lasers
The Cobolt 04-01 Series lasers are continuous-wave diode-pumped lasers (DPL) operating at a fixed wavelength between 457 nm and 1064 nm. Single frequency operation provides an ultra
narrow spectral linewidth, long coherence length and excellent spectral purity. The lasers are designed and manufactured to ensure a high level of reliability.
- 457 nm – 1064 nm, CW up to 400 mW
- Linewidth < 1 MHz
- TEM00 beam
- Low noise, <0.25% rms
- Wavelength stability <1 pm (over ± 2 °C and 8 hrs)
- Optional integrated modulation up to 3MHz
- Fiber pigtailed option
- Ultra-robust, hermetically sealed packages, proven reliability
- Up to 24 months warranty, unlimited hours
Applications
Perfect for interferometry, Raman, holography, microscopy.
Specifications
| Product | Wavelength | Power | Fiber pigtailed option | Modulated option |
| Cobolt Twist™ | 457 nm | ≤ 50 mW | - | ≤ 40 mW |
| Cobolt Blues™ | 473 nm | ≤ 50 mW | ≤ 35 mW | ≤ 40 mW |
| Cobolt Calypso™ | 491 nm | ≤ 100 mW | ≤ 100 mW | ≤ 80 mW |
| Cobolt Fandango™ | 515 nm | ≤ 150 mW | ≤ 100 mW | ≤ 120 mW |
| Cobolt Samba™ | 532 nm | ≤ 400 mW | ≤ 150 mW | ≤ 240 mW |
| Cobolt Jive™ | 561 nm | ≤ 200 mW | ≤ 100 mW | ≤ 120 mW |
| Cobolt Mambo™ | 594 nm | ≤ 100 mW | ≤ 75 mW | ≤ 80 mW |
| Cobolt Flamenco™ | 660 nm | ≤ 100 mW | - | ≤ 80 mW |
| Cobolt Rumba™ | 1064 nm | ≤ 400 mW | - | - |
