The smallest and most energy efficient 400W CO2 laser available. i Series delivers 400W of near-perfect beam quality with 45° linear polarization for high-precision applications. Built around a hybrid waveguide/unstable resonator i Series feature fast rise/fall times while being driven by four replaceable integrated 48V RF modules. i Series delivers immediate energy cost savings with best-in-class energy efficiency, up to 23% better than other 400 W lasers. With its single tube design, i Series weighs 24% less than competitive lasers – an important factor when mounting on moving gantry systems or robotic motion systems. The i Series includes a TCP/IP web-based Internet interface that allows access to information about LED and RF module status – including voltage, current, and temperature measurements using a standard web browser to manage laser operation and ensure optimal performance. Built-in gas purge port for easy connection to nitrogen or CDA purge systems and an internal electromechanical shutter for operator safety make i Series the ultimate OEM laser.

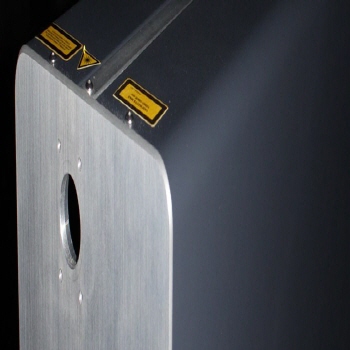

i Series: 400W Lasers
The smallest and most energy efficient 400W CO2 laser available. i Series delivers 400W of near-perfect beam quality with 45° linear polarization for high-precision applications. Built around a hybrid waveguide/unstable resonator i Series feature fast rise/fall times while being driven by four replaceable integrated 48V RF modules. i Series delivers immediate energy cost savings with best-in-class energy efficiency, up to 23% better than other 400 W lasers. With its single tube design, i Series weighs 24% less than competitive lasers – an important factor when mounting on moving gantry systems or robotic motion systems. The i Series includes a TCP/IP web-based Internet interface that allows access to information about LED and RF module status – including voltage, current, and temperature measurements using a standard web browser to manage laser operation and ensure optimal performance. Built-in gas purge port for easy connection to nitrogen or CDA purge systems and an internal electromechanical shutter for operator safety make i Series the ultimate OEM laser.
| Model | i401 |
|---|---|
| Output Power | 400W |
| Mode Quality | M2<1.2 |
| Rise Time | < 100 µsec |
| Beam Diameter | 6.0 mm + 0.6 mm |
| Beam Divergence (full angle) | 2.5mR + 0.3mR |
| Wavelength | 10.2 µm/10.6 µm |
| Power Stability from cold start (guaranteed)/after 2 min. (typical) | +7%/+5% |
| Cooling | Water |
| Heat Load | 6000W |
| Input Voltage/Current | 48 VDC/125A |
| Dimensions inches (mm) | 43.8 x 8.2 x 11.8 (1227 x 208 x 300) |
| Weight | 130 lbs./59 kg |
| Data Sheet | Click here to download |
| Technical Drawing | Click here to download |
| Manual | Click here to download |
| Product | Description | Go To |
|---|---|---|
| Power Supply | Recommended DC power supply for Synrad lasers | Click here for more info |
