Ultra compact, next gen lasers for demanding industrial coding, marking and engraving applications. Engineered for original equipment manufacturers (OEMs) with a small footprint, and drop-in compatibility, sharing the same beam exit point with both v and ti Series lasers. The new vi40 includes a new Temperature Broadcast feature for real-time condition monitoring, and the Gen2 tube design efficiently manages thermal resistance and power to deliver a stable accurate beam. The vi Series are some of the most compact and lightest 30 W and 40 W CO2 lasers available, perfect for small spaces and weight sensitive systems.

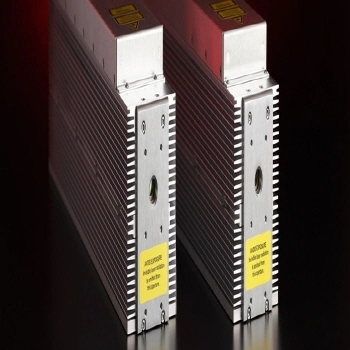

vi Series: 30W & 40W Lasers
Ultra compact, next gen lasers for demanding industrial coding, marking and engraving applications. Engineered for original equipment manufacturers (OEMs) with a small footprint, and drop-in compatibility, sharing the same beam exit point with both v and ti Series lasers. The new vi40 includes a new Temperature Broadcast feature for real-time condition monitoring, and the Gen2 tube design efficiently manages thermal resistance and power to deliver a stable accurate beam. The vi Series are some of the most compact and lightest 30 W and 40 W CO2 lasers available, perfect for small spaces and weight sensitive systems.
| Model | vi30+ | vi40 |
|---|---|---|
| Output Power | 20W @ 9.3 µm 25W @ 10.2 µm 30W @ 10.6 µm | 40W |
| Mode Quality | M2<1.2 | M2<1.2 |
| Rise Time | < 100 µsec | < 100 µsec |
| Beam Diameter | 2.5 mm + 0.5 mm | 2.5 mm + 0.5 mm |
| Beam Divergence (full angle) | < 7.0mR | < 7.0mR |
| Wavelength | 9.3 µm/10.2 µm/10.6 µm | 10.6 µm |
| Power Stability from cold start (guaranteed)/after 2 min. (typical) | +5%/+3% | +5%/+3% |
| Cooling | Air/Water | Air |
| Heat Load (max) | 500W | 680W |
| Input Voltage/Current | 48 VDC/10A | 48 VDC/15A |
| Dimensions inches (mm) | 16.8 x 3.5 x 5.45 (427 x 89 x 138) | 16.8 x 3.5 x 5.45 (427 x 89 x 138) |
| Weight | 13 lbs/5.9 kg | 13 lbs./5.9 kg |
| Data Sheet | Click here to download | Click here to download |
| Technical Drawing | Dual: Click here to download Tall: Click here to download Tall/Wide: Click here to download | Click here to download |
| Manual | Click here to download | |
| Product Change Notification | Click here to download |
| Product | Description | Go To |
|---|---|---|
| Power Supply | Recommended DC power supply for Synrad lasers | Click here for more info |
