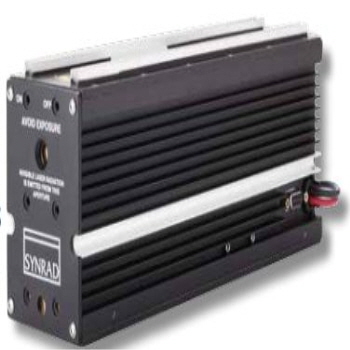

The 32 Series features the only RF-integrated 5 Watt CO2 laser available, the 32-1. A 5 Watt CO2 laser is a unique piece of equipment, and the new 32-1 is the perfect solution for PCB marking applications where end-users demand smaller machines for compact factory settings. The 32-1 is also the industry's smallest CO2 laser, setting a new benchmark for low power, industrial grade CO2 lasers. Many sensitive marking applications currently use higher power lasers and bleed off the excess laser power to avoid burn-through and excessive melting. Engineered specifically for marking and coding on sensitive materials, the 32-1 uses less energy than higher power lasers, reducing operating costs.
New 32 Series: 5W Laser
The 32 Series features the only RF-integrated 5 Watt CO2 laser available, the 32-1. A 5 Watt CO2 laser is a unique piece of equipment, and the new 32-1 is the perfect solution for PCB marking applications where end-users demand smaller machines for compact factory settings. The 32-1 is also the industry's smallest CO2 laser, setting a new benchmark for low power, industrial grade CO2 lasers. Many sensitive marking applications currently use higher power lasers and bleed off the excess laser power to avoid burn-through and excessive melting. Engineered specifically for marking and coding on sensitive materials, the 32-1 uses less energy than higher power lasers, reducing operating costs.
| Performance | 32-1 |
|---|---|
| Output Power | 5 W |
| Mode Quality | < 1.2 |
| Rise/Fall Time | < 150/150 µsec |
| Beam Diameter | 2.5 mm + 0.5 mm |
| Wavelength | 10.6 + 0.03 µm |
| Power Stability from cold start (guaranteed) | + 15% (~10% typ) |
| Cooling | Air |
| Heat Load (max) | 150 W |
| Input Voltage/Current | 30 VDC + 2.0/4 A |
| Dimensions Inches (mm) | 11.2 x 2.8 x 4.2 (284 x 71 x 106) |
| Weight | 7 lbs. (3.18 kg) |
| Data Sheet | Click here to download |
| Technical Drawing | Click here to download |
| Manual | Click here to download |
