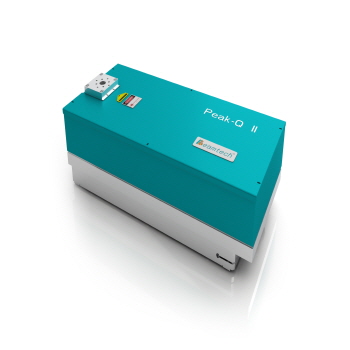

Peak-Q II Model Laser
⠀⠀⠀⠀⠀⠀⠀⠀⠀
- 500 ps/10 Hz/500 mJ
- Excellent flat top-hat beam distribution
- High stability under high and low energy operation
- Multiple pass amplifier design
- High efficiency of power and cooling system(<800W)
- Peak-Q II model laser is the second picosecond cometic laser Beamtech developed, which targets for cost effective ratio. Since the release in 2017, it has been delivered more than 100 units worldwide.
Peak-Q II model laser applies the advanced seeding technology and provides the considerably cost effective picosecond laser. With 500ps pulse width and 500mJ energy output, together with excellent flat-top beam distribution, the high peak power allows the new generation method of pigmented disease treatment and tattoo removal applications. With one-lamp-two-rod cavity and multipass amplifier design, Peak-Q II is an significantly compact picosecond laser commercially available and only requires less than 800W for both power supply and cooling power consumption.
At beginning of 2018, Peak-Q II model officially acquired CE and RoHS certification, which enables this model the safe and mature choice.

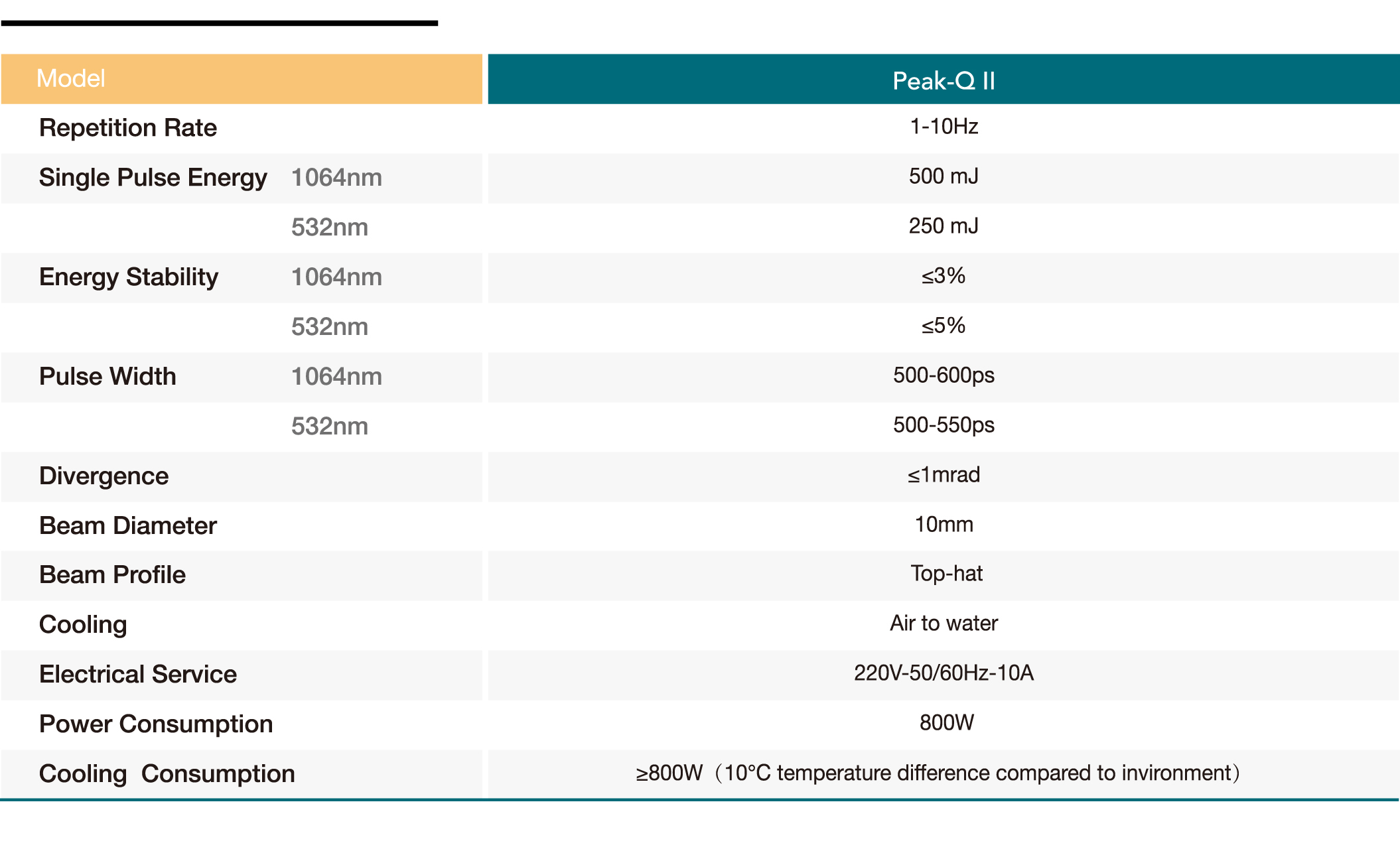

Laser specifications
Peak-Q II model laser applies the advanced seeding technology and provides the considerably cost effective picosecond laser. With 500ps pulse width and 500mJ energy output, together with excellent flat-top beam distribution, the high peak power allows the new generation method of pigmented disease treatment and tattoo removal applications. With one-lamp-two-rod cavity and multipass amplifier design, Peak-Q II is an significantly compact picosecond laser commercially available and only requires less than 800W for both power supply and cooling power consumption.
At beginning of 2018, Peak-Q II model officially acquired CE and RoHS certification, which enables this model the safe and mature choice.
