Dual Pulse Lasers - Vlite Series Laser
⠀⠀⠀⠀⠀⠀⠀⠀⠀
- High output energy 10 mJ-500 mJ@532 nm
- High repetition rate kHz available with 50 mJ output
- 355 nm and 266 nm optional
- Repetition rate continuously adjustable
- High repetition rate kHz available with 50 mJ output
- Special design for uniform beam profile
- Low timing jitter ensures timing accuracy
- Laser arm and sheet optics available

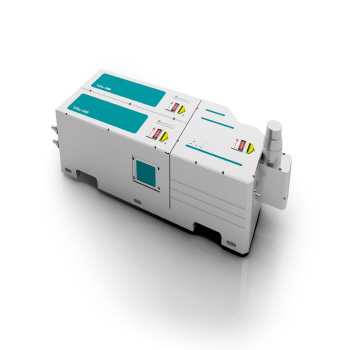

- Vlite series lasers are dual pulse Q-switched nanosecond laser systems. This series is specifically designed for PIV applications.
Vlite series lasers have been developed for more than 10 years. This series lasers have passed the CE certification.This series are specifically designed for various 2D/3D PIV, Tomographic PIV and Time-resolved PIV application. As the early stage PIV laser supplier in the world, Beamtech has delivered hundreds of PIV laser worldwide for various fields such as high speed flow area, marine bionics, aeronautics, astronautics, spray and flame. Beamtech have been working with the leading PIV system integrators to provide the complete solution for the customers.
Vlite series lasers provide both multimode and VRM mode beam profile with good beam quality. The long term engineering technologies have ensured the working reliability and stability of this series. Features as optical shutter, flow sensor, power supply interlock make sure the safety use as the top priority.

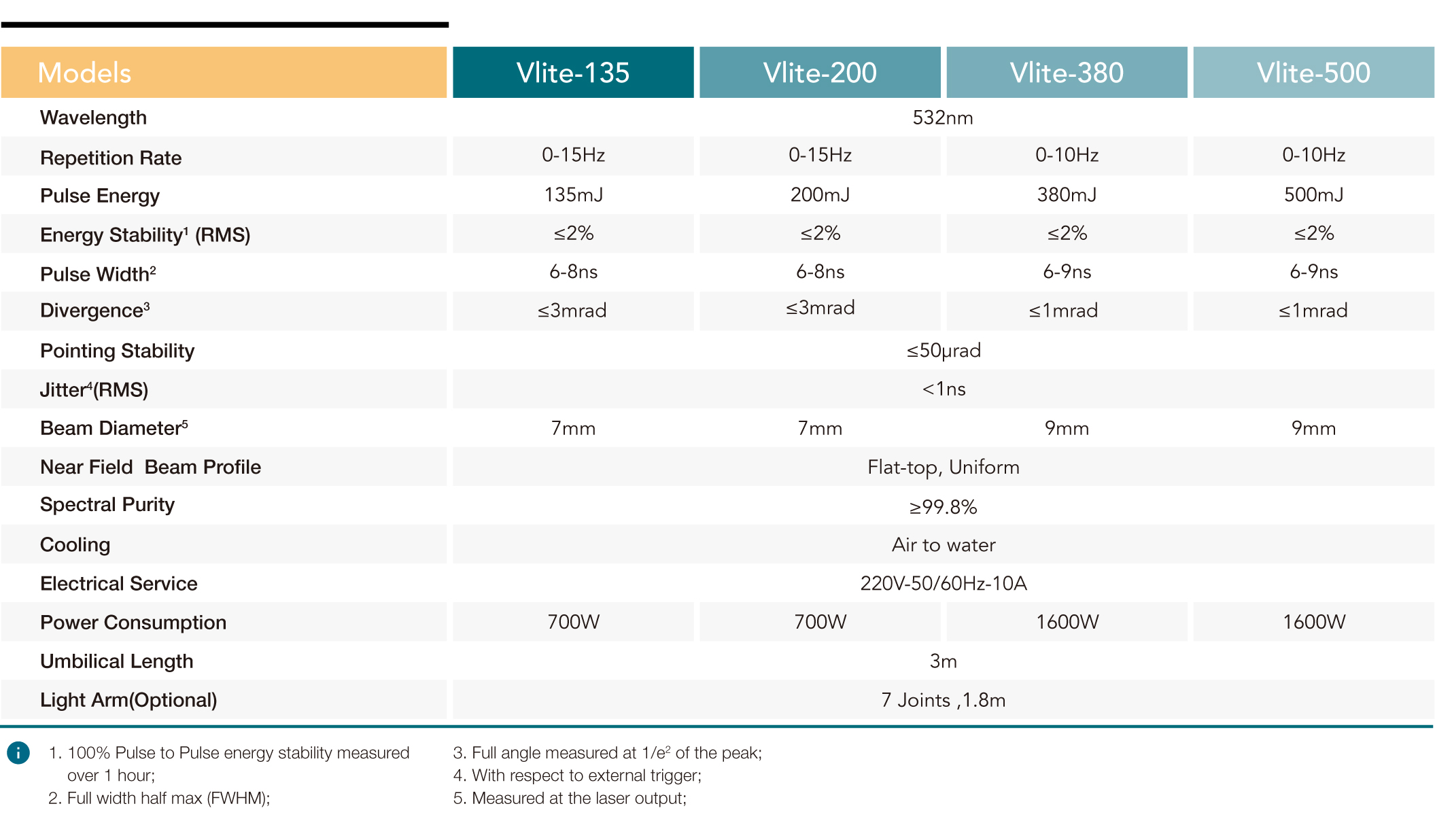

Laser specifications
Vlite series lasers have been developed for more than 10 years. This series lasers have passed the CE certification.This series are specifically designed for various 2D/3D PIV, Tomographic PIV and Time-resolved PIV application. As the early stage PIV laser supplier in the world, Beamtech has delivered hundreds of PIV laser worldwide for various fields such as high speed flow area, marine bionics, aeronautics, astronautics, spray and flame. Beamtech have been working with the leading PIV system integrators to provide the complete solution for the customers.
Vlite series lasers provide both multimode and VRM mode beam profile with good beam quality. The long term engineering technologies have ensured the working reliability and stability of this series. Features as optical shutter, flow sensor, power supply interlock make sure the safety use as the top priority.
