High speed laser diode driver with user-design nanosecond pulse shape
⠀⠀⠀⠀⠀⠀⠀⠀⠀
- Direct modulation of nanosecond laser pulses with any shape
- Built-in pulse AWG with internal or remote triggering
- 0 to 1.6 A output current with 16 bit/48 dB/30 μA resolution
- Integrated TEC controller with over temperature protection

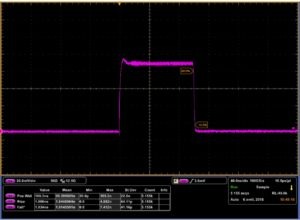

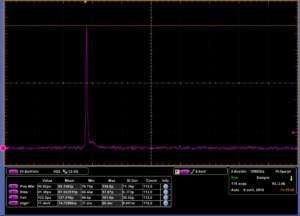

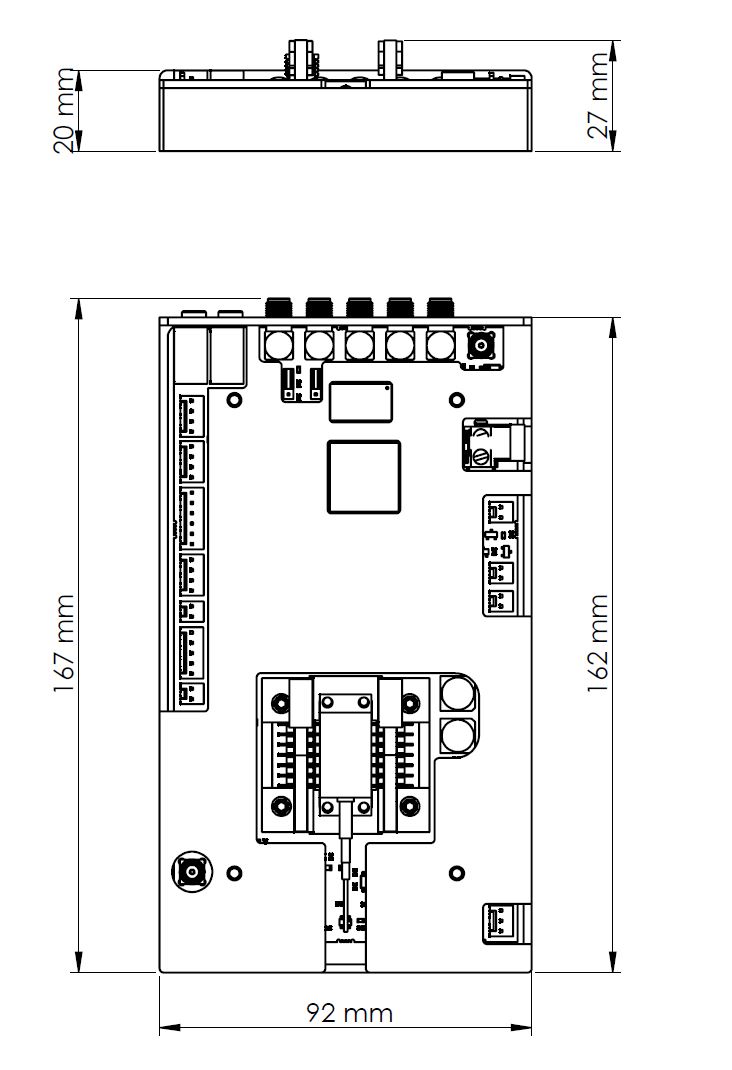

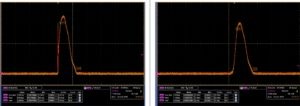

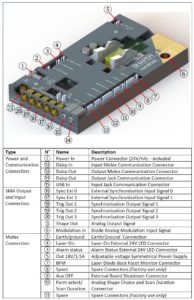

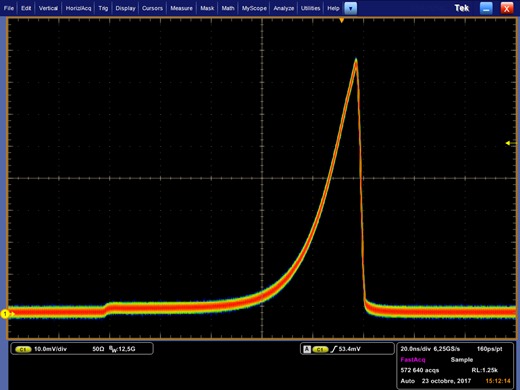

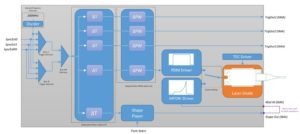

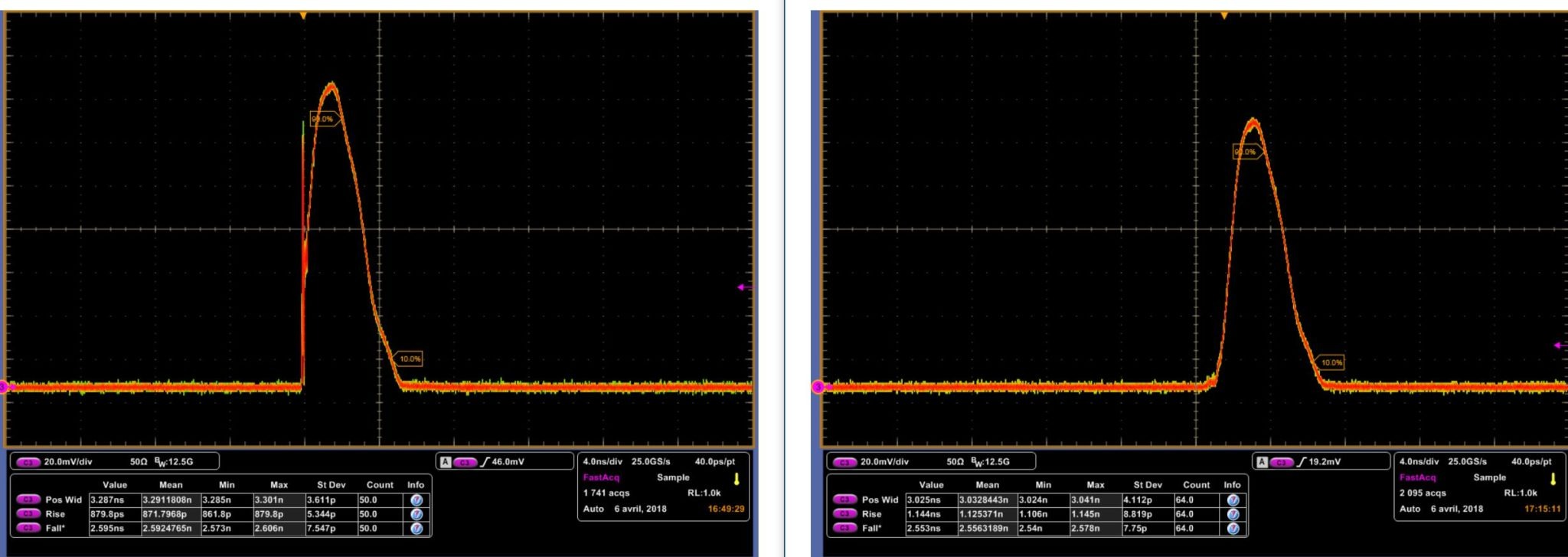

- Special mode for laser diode “gain switch peak” suppression
- Two versions for either direct modulation or external modulation (see spec table and pictures)
- 3 Integrated Pulse Delay Generators
- GUI software and several libraries software integration (LabVIEW, DLLs, Hexa, Python)
High speed laser diode driver KEY FEATURES :
- Direct modulation of nanosecond laser pulses with any shape
- Built-in pulse AWG with internal or remote triggering
- 0 to 1.6 A output current with 16 bit/48 dB/30 μA resolution
- Integrated TEC controller with over temperature protection
- Special mode for laser diode “gain switch peak” suppression
- Two versions for either direct modulation or external modulation (see spec table and pictures)
- 3 Integrated Pulse Delay Generators
- GUI software and several libraries software integration (LabVIEW, DLLs, Hexa, Python)

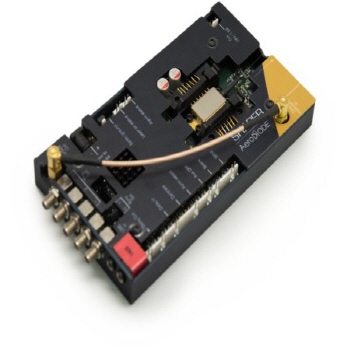

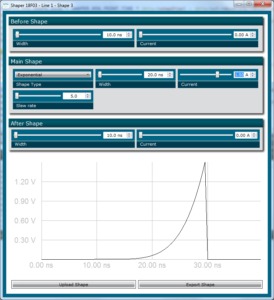

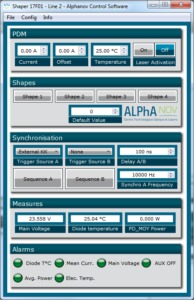

The GUI software lets the user have total control of all module functions. It includes several libraries for software integration ((Labview VIs, DLLs, Hexa, Python etc.)
Applications of this driver includes high energy laser seeding, LIDAR testing, etc.
This high speed laser diode driver works alone or in series with other products in our range like :
- Pulsed laser diode driver
- Multi channel laser diode driver
- Fiber laser diode driver
- 915 nm laser diode
- 1064 nm laser diode
- 1550 nm laser diode
- Fiber optic modulator
- SOA pulsed driver
- Pulse delay generator
- Pulse picker
DFB or Bragg-based laser diodes such as Thorlabs, lumentum or 3SP are perfectly well controlled.

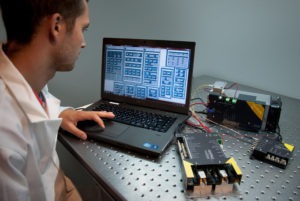

All Aerodiode products can be connected together with a single GUI interface which consolidates all module functions. This allows the users to save a lot of time.
Read our Tutorials to get a good overview of the capabilities of this high speed laser diode driver :
| Shaper-direct (Direct modulation of the laser diode) | Shaper-external (External modulation of the laser diode - see picture) | ||
|---|---|---|---|
| Laser diode driver | Pulse mode | User design pulse shape | Square pulse (1 ns to CW) |
| Peak current level | 0-1.6 A | 0-3.5 A | |
| Pulse duration | 0.5 ns - 8 µsec | 1 ns - CW | |
| Pulse timing resolution | 500 ps | ||
| Pulse current resolution | 30 µA | ||
| Jitter (internal / external trigger) | < 100 ps / ±2.5 nsec | ||
| Laser diode gain switch peak suppression function | Yes (user switchable and configurable) | No | |
| External modulator driver (EOM or AOM) : See our fiber modulator tutorial for more precisions | EOM/AOM pulse duration (4000 step max) | N.A. | 0.5 ns - 8 µs |
| EOM/AOM pulse timing resolution | N.A. | 500 ps | |
| Output voltage | N.A. | 1 V (50 Ohm) / 5V (High-Z) | |
| Pulse delay generators outputs (external equipment synchronization) | Number of outputs | 3 | |
| Synchronization signals duration | 0 - several hours | ||
| Synchronization signal resolution | 1 ns | ||
| Output voltage | 3.3 V (50 Ohm) | ||
| Special functions | Configurable starting modes | 4 (OEM, previous settings etc.) | |
| Configurable GUI | 100% adjustable by expert user with several user modes (production user, maintenance user etc.) | ||
| Configurable output power supply | 0-18V adjustable voltage to drive any additional external board | ||
| General | Compatibilities & libraries | Window 7/10 ; Hexa, DLLs, LabVIEW | |
| Interface | USB or UART | ||
| Power supply | 24V / 4A (110V/220V adapter included) | ||
