Pulsed Laser diode driver & TEC control
⠀⠀⠀⠀⠀⠀⠀⠀⠀
- The user can set pulse width from 1 ns to CW
- It includes an integrated TEC controller
- It can reach up to 4 MHz repetition rate (250 MHz option)
- Down to 500 ps pulse risetime
- Up to 1500 mA peak current (3500 mA option)
- Flexibility to choose from three different pulse generation sources : internal, external, external trigger with internal pulse generator
- Flexibility to choose from 3 peak power adjustment modes : USB, manual & analog (0-5 V)
- Smart control (USB interface) with several Libraries (LabVIEW VIs, Hexa, Python, DLLs)

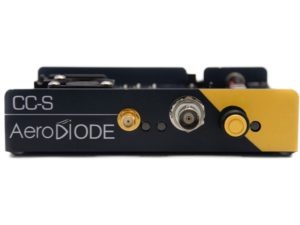

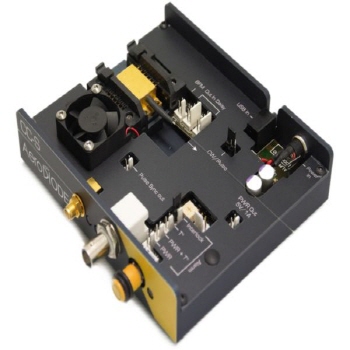

CCS is a very compact and modular pulsed laser diode driver. It is compatible with nearly any laser diode form factor.

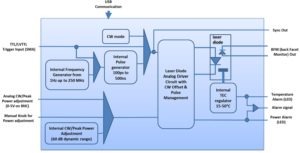

Pulsed laser diode driver key features :

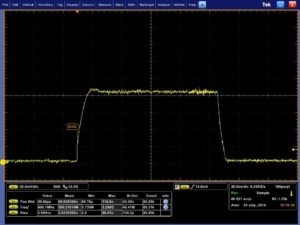

- The user can set pulse width from 1 ns to CW
- It includes an integrated TEC controller
- It can reach up to 4 MHz repetition rate (250 MHz option)
- Down to 500 ps pulse risetime
- Up to 1500 mA peak current (3500 mA option)

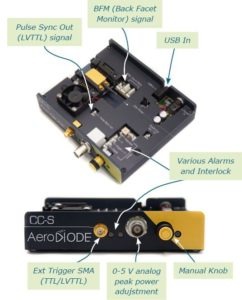

- Flexibility to choose from three different pulse generation sources : internal, external, external trigger with internal pulse generator
- Flexibility to choose from 3 peak power adjustment modes : USB, manual & analog (0-5 V)
- Smart control (USB interface) with several Libraries (LabVIEW VIs, Hexa, Python, DLLs)
Applications :
This high speed driver can be used for laser seeding, LIDAR or 1D-3D-sensing testing, VCSEL evaluation, Fiber lasers etc.
GUI & Libraries :

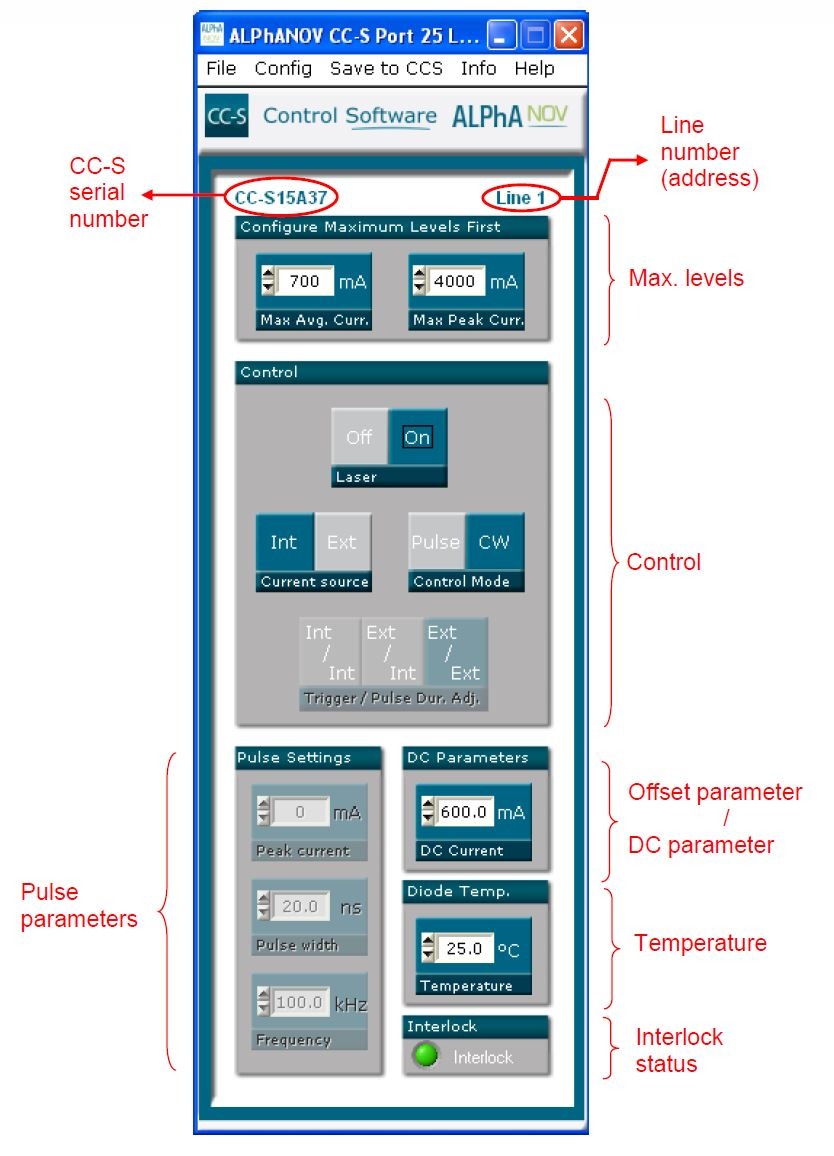

The GUI software lets the user have total control of all module functions. It includes several libraries for software integration ((Labview VIs, DLLs, Hexa, Python etc.)
This pulsed laser diode driver works alone or in series with other products in our range like :
- High speed laser diode driver
- Multi channel laser diode driver
- Fiber laser diode driver
- 808 nm laser diode
- 915 nm laser diode
- 1064 nm laser diode
- 1550 nm laser diode
- Fiber optic modulator
- SOA pulsed driver
- Digital delay generator
Butterfly laser diodes such as Lumentum or 3SP are easily driven in CW or pulsed regime from single shot up to 250 MHz repetition rate. See our Tutorial on Fiber coupled laser diodes : Fiber-coupled laser diode basics

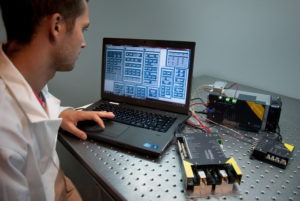

All Aerodiode products can be connected together with a single GUI interface which consolidates all module functions. This allows the users to save a lot of time.
| CCS-std | CCS-HP (High Power) | CCS-UHP (Ultra High Power) | CCS-HPP (High Pulse Performance) | Shaper (User-design pulse shape - see special product page) | |
|---|---|---|---|---|---|
| Output current - Pulse regime | 1.5 A | 3.5 A | 9A | 4A | 1.6 A |
| Output current - CW regime | 0.8 A | 1.5 A | 2 A | no | |
| Output voltage range | up to 4.8 V | up to 5/10 V | 1 - 24 V (adjustbale) | up to 24 V | |
| Laser diode T° range | 15-50 °C | ||||
| Pulse duration (Ext pulse trigger) | 0.5 ns - CW | 0.5 ns - 8 µs | |||
| Pulse duration (Internal pulse generator) | 0.5 ns - 500 ns | ||||
| Typ rise/fall time (TO/Butterfly/VCSEL) (1) | 1 / 3 / 0.5 (ns/A) | 0.5 / <1 / <0.5 (ns/A) | |||
| Typ min pulse duration (Butterfly) | 1.5 ns | 5 ns | 1 ns | ||
| Internal rep rate adjustment | 1 Hz - 4 MHz | 1 Hz - 10 MHz | 1 Hz - 250 MHz | 1 Hz - 20 MHz | |
| Temporal Jitter (rms) | < 25 ps | < 8 ps | < 1.5 ns | ||
| Adj. CW offset in pulse regime | No | Yes | No | ||
| User design pulse shape | No | Yes | |||
| Interface/GUI/libraries | USB - Windows 7/10 - DLLs - Hexa - Labview - Python | ||||
| Dimensions (mm) | 130*119*28 | 170*107*27.5 | 167*92*27 | ||
| Power supply | 12 V (110 - 220 V adapter included) | 24 V (110 - 220 V adapter included) | |||
