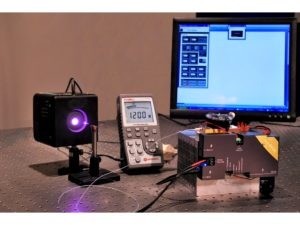

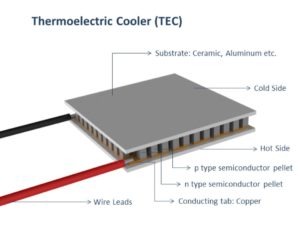

High power laser diode driver - 36 V/21 A with TEC & Air Cooling
⠀⠀⠀⠀⠀⠀⠀⠀⠀
- Ultra-stable laser power for short and long term operations
- Up to 150 W CW power with new generation laser diodes
- Max modulation frequency : 100 kHz
- Highly efficient (> 80 % from plug)

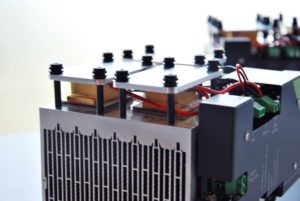

- Can be configured for two laser diodes mounted in series
- Automatic fan regulation for quiet operation at low power

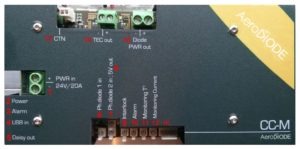

- Photodiode power monitoring input
- ACC (Automatic Current Control) and APC (Automatic Power Control) modes
- Smart control (USB interface & GUI)
- Many available libraries (LabVIEW, DLLs, Hexa, Python)
Key features
- Ultra-stable laser power for short and long term operations
- Up to 150 W CW power with new generation laser diodes
- Max modulation frequency : 100 kHz
- Highly efficient (> 80 % from plug)
- Can be configured for two laser diodes mounted in series
- Automatic fan regulation for quiet operation at low power
- Photodiode power monitoring input
- ACC (Automatic Current Control) and APC (Automatic Power Control) modes

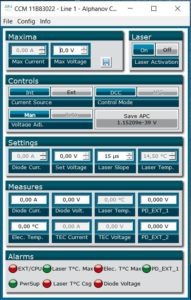

- Smart control (USB interface & GUI)
- Many available libraries (LabVIEW, DLLs, Hexa, Python)
Applications of this high power laser diode driver include fiber laser pumping, nondestructive control etc.
CCM high power laser diode driver is part of our “Multiboard” laser driver and synchronization module family. These are are ideal solutions to help R&D teams reach their best performance by facilitating fast and cost effective development of integrated solutions. GUI software lets the user have total control of all module functions.
It works alone or in series with other products in our range like :
- Laser driver
- Laser diode driver (board level)
- Fiber laser diode driver
- 915 nm laser diode
- 976 nm laser diode
- 980 nm laser diode
- 1064 nm laser diode
- High power laser diode
- Pulse delay generator
- Pulse picker
Complex systems, such as fiber lasers, can be quickly developed on this module platform.
See our Tutorials to get an overview of its capabilities. :
| CCM-std (Standard version) | New : CCM-HP (High Power) | |
|---|---|---|
| Output current | 0 - 13 A | 0 - 21 A |
| Output Voltage | 0 - 23 V | 0 - 36V |
| Laser diode regulation T° range | 15-40 °C | |
| Laser diode temperature stability (integration dependant) | 10 mK | |
| Low power adjustment precision | 0.05 A | |
| Laser power stability | < 0.05% | |
| Max modulation rate | 100 kHz | |
| Interface/GUI/libraries | USB/UART - Windows 7/10 ; DLLs - Hexa - Labview - Python | |
| Power supply | 24 V (220/110V power supply not included) | |
| Dimensions (mm) | 238 * 119 * 112 | 238 * 146 * 142.5 |
