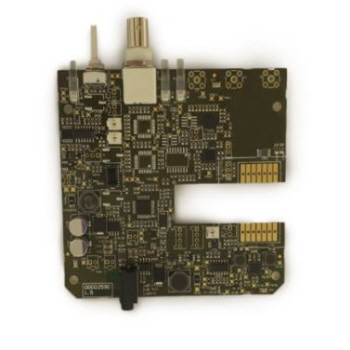

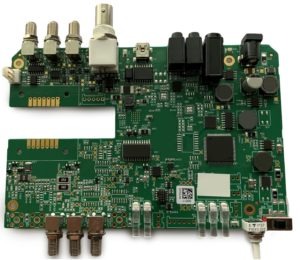

Laser Diode Driver with TEC control & USB – Board level
⠀⠀⠀⠀⠀⠀⠀⠀⠀
- Small form factor ideal for OEM integration
- Compatible for butterfly laser diodes and other laser diode form factors (Type 1 or Type 2 pinning)
- Output Current : 3 versions : 800 mA , 1500 mA, 2500 mA
- Output Voltage Maximum: 3 versions 4.8V, 5V or up to 24V (see specifications)
- Current Set-Point Resolution (@ 200 mA Set-Point): 0.05 mA
- USB, manual & analog (0-5 V) power adjustment
- 4 starting modes can be configurated by the user (OEM mode, previous settings mode (laser diode at 0 mA), etc )
Laser diode driver
Key Features :
- Small form factor ideal for OEM integration
- Compatible for butterfly laser diodes and other laser diode form factors (Type 1 or Type 2 pinning)
- Output Current : 3 versions : 800 mA , 1500 mA, 2500 mA
- Output Voltage Maximum: 3 versions 4.8V, 5V or up to 24V (see specifications)
- Current Set-Point Resolution (@ 200 mA Set-Point): 0.05 mA
- USB, manual & analog (0-5 V) power adjustment
- 4 starting modes can be configurated by the user (OEM mode, previous settings mode (laser diode at 0 mA), etc )
LabVIEW, Hexa, DLLs and Python Libraries available

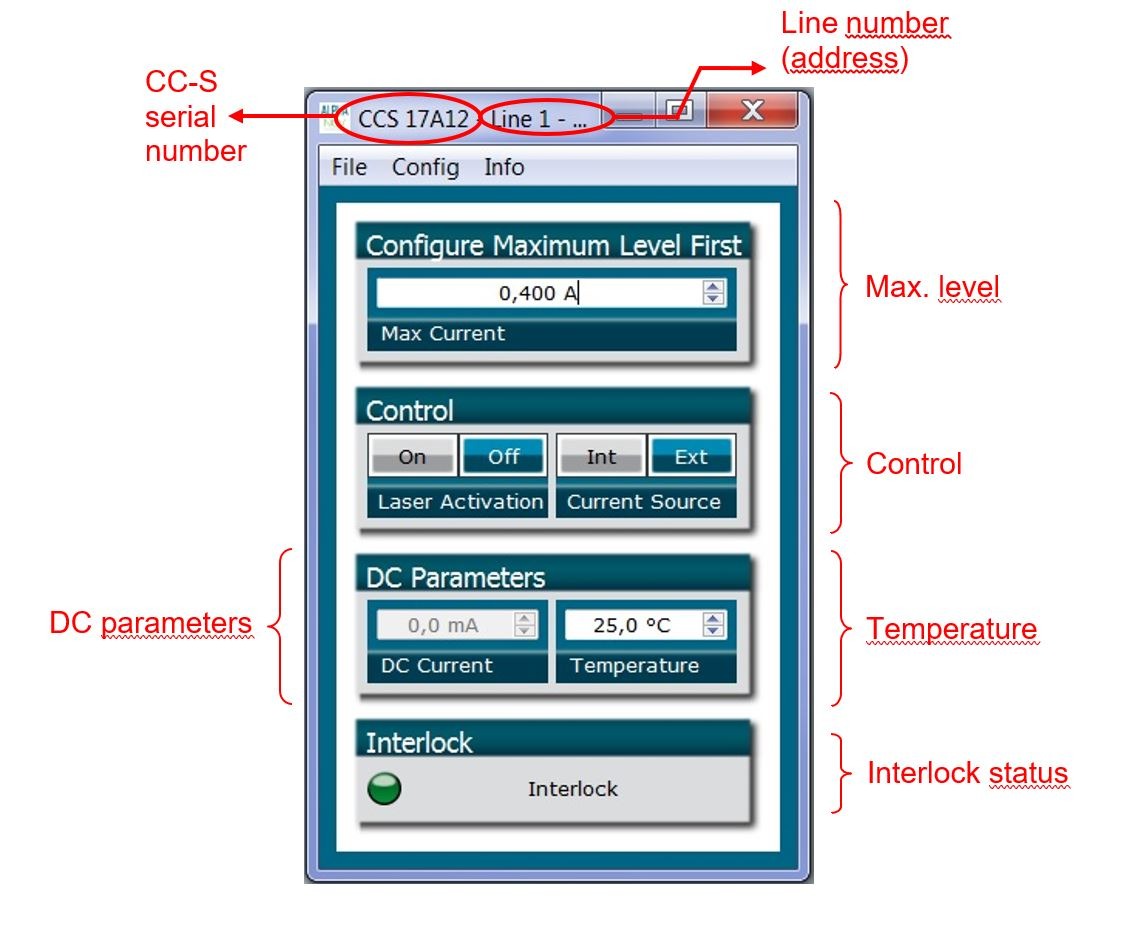

The GUI software lets the user have total control of all module functions. It is easily configurable with several access levels (operator/expert etc.) . It includes several libraries for software integration (LabVIEW VIs, DLLs, Hexa , Python etc.)

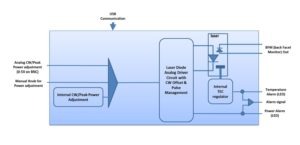

The integrated laser diode protection circuits protect your devices under test at all times. A user set the current limit and a special temperature protection clamp both the bias current and the operating temperature to prevent damage to the laser. A soft-start current ramp protects the laser from the possibility of thermal shock or current surges. The GUI control software is included with the purchase price and offers users simple set-up and control.
This laser diode driver works alone or in series with other products from our range including:
- Laser driver
- Low noise laser diode driver
- TDLAS
- 808 nm laser diode
- 976 nm laser diode
- 980 nm laser diode
- 1064 nm laser diode
- Fiber optic modulator
- SOA pulsed driver
- Digital delay generator

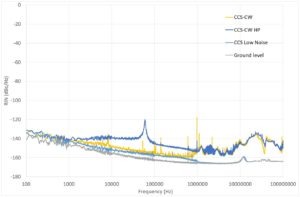

| CCS-CW std (Standard version) | CCS-CW-HP (High Power) | CCS-Low Noise (Ultra low noise version) | |
|---|---|---|---|
| Output current | 0 - 800 mA | 0 - 1500 mA | 0 - 1500 mA (contact us for special 2500 mA version) |
| Set point resolution (@ 100 mA) | 25µA | ||
| Output current modulation (External mode) | From external 0-5V Bandwidth : 100 Hz | 0-20 mA/V (adjustable) Bandwidth : 100 kHz (500 kHz provisional) | |
| Output compliance voltage | 0 - 4.8V | 0 - 5 V (8 V -contact us) | 0 - 5 V (see TDLAS product page for a 0-24 V version) |
| Laser diode T° range | 15 -50 °C | 0 - 90 °C | |
| Temperature stability (typ) | < 10 mK | < 1 mK | |
| TEC current/Voltage | +-1.5A / 3.8 V | +- 3A / 4.6V | |
| BFM (Back Facet Monitor) | BFM output connector only | Yes (variable gain) | |
| External photodiode monitoring | no | Yes (variable gain) | |
| Interface/GUI/libraries | USB - Windows XP/7/10 ; DLLs - Hexa - Labview - Python | ||
| Dimensions (mm) | |||
| Power supply | 12 V | 24 V | |
