Create losses… and pulses.

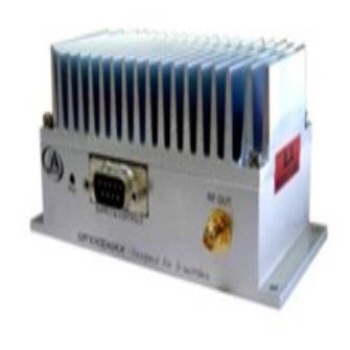

A complete range of Q-switches drivers from 24 MHz up to 110MHz, with RF power up to 200 Watts.
Different sizes and models with a wide choice of control signals in order to shape your pulses.
Additional information
| Model | Carrier Frequency MHz | Max RF Power W | Rise Fall/ Time ns | Controls | Exctinction Ratio dB | Security Measurement | Power Supply | Class |
|---|---|---|---|---|---|---|---|---|
| QMODP0xx - Reliable Basic Solution up to 20 Watts | 27.12 40.68 68 80 | 10 20 | < 20 | TTL + FAC (0-5V) | 45 | NO | 24 VDC 2.3-2.9 A | A |
| QMODP1xx- Compact Solution 20, 30, 70 Watts | 27.12 40.68 68 80 | 20 30 70 | < 30 < 30 < 50 | TTL (R) + FAC (0-5V) | 45 | Output Power Return Power Thermal (QST + Driver) | 15 VDC | A |
| QMODP2Axx - Ultra Compact Solution 5, 10, 20 Watts | 27.12 40.68 68 80 | 5 10 20 | < 10 < 20 < 30 | TTL | 40 | NO | 24 VDC 3-6 A | A |
| QMODP3xx - High power solution 100-120 Watts | 27.12 40.68 | 120 | < 50 | TTL (R) + FAC (0-5V) | 45 | Output Power Return Power Thermal (QST + Driver) | 24 VDC 12 A | A |
| QMODP4xx - DUAL OUTPUTS solution (2 synchronized outputs) | 27.12 40.68 68 80 | 2 x 30 2 x 60 | < 50 | TTL (R) + FAC (0-5V) | 45 | Output Power Return Power Thermal (QST + Driver) | 24 VDC 6-12 A | A |
| QMODP1xx-F | 27.12 40.68 80 | 200 | < 70 | TTL (R) + FAC (0-5V) | 45 | Output Power Return Power Thermal (QST + Driver) | 48 VDC 8A | A |
