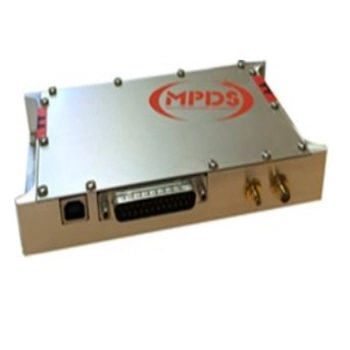

MPDS – Multi Purposes Digital Synthesizers
The MPDSnC driver, based on DDS (Direct Digital Synthesizer), has been specially designed in order to exploit the best of the AOTFnC features. It offers up to 8 single channels mixed in one output.
Its compact design with single power supply, low RF emissions and ease of use will satisfy the most demanding of applications, where accuracy and flexibility are key requirements. Thanks to its complete digital design and integrated microcontroller setting up is fast, simple and repeatable. Access to and adjustments of functions is simple with either an Android tablet (with remote control adjustment) or through a RS232 serial link (with computer control) or USB communication.
All parameters are stored in an EEPROM and are automatically loaded after each switch on. Each line is externally controlled by a distinct modulation input signal which can be digital or analog. Additionally, all lines can be simultaneously controlled by a blanking signal which produces smooth effects without modifying the colorimetric balance. The combination of the modulation input and blanking signals provides the best extinction ratio performance (> 100 dB).
Additional information
Data Sheet
| Model | MPDSnC driver, 1, 4 or 8 channels |
|---|---|
| Number of channels | 1, 4, 8 |
| Frequency range | Will be adapted to AO up to 200 MHz |
| Frequency stability | +/- 2 ppm / °C |
| Frequency accuracy | < 1 KHz |
| Frequency step | Nom 1 KHz |
| Frequency control | Remote Control or USB, Option : RS232 |
| Rise/Fall Time (10-90%) | < 50 ns |
| Modulation Input Control | Analog 0-5 V / 10 kOhms or Analog 0-10 V / kOhms |
| Blanking input Control | Analog 0-5 V or Analog 0-10 V / kOhms (option TTL) |
| Power Supply | OEM version : 24 VDC - nom 0,85 A Laboratory version : 110/230 VAC - 50Hz60 Hz |
| Extinction ratio @ 125 MHz | MOD IN > 80dB typ 90 dB BLK > 70 dB typ 80 dB MOD IN + BLK > 90 dB typ 100 dB |
| Output RF power | 22 dBm per channel [up to 36 dBm] |
| Output Impedance | 50 ohms |
| V.S.W.R. | Nom < 1,5/1 |
| Input/Output connectors | DB25 / SMA (DB9 for RS232) |
| Size | OEM version: MDS (207 x 127 x 26,1 mm3), MPDS (154 x 92 x 26.1mm3) Laboratory version: Rack 19’’, 1U |
| Weight | OEM version: <1 kg Laboratory version: nom 4 kg |
| Heat exchange | OEM version: Conduction Laboratory version: standalone |
| Operating temperature | 10 to 40 °C |
USB/RS232 software for MPDS/MDS
