Plug and play synchronization…

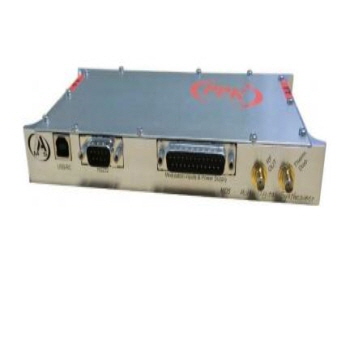

PPKxx: These drivers have been designed in order to offer the highest possible performances in high speed Pulse Picking applications with repetition rates from 0.01 to 85MHz.
With their synchronization functionalities, they offer the best pulse to pulse stability. The provided intuitive GUI and PC software make them a simple tool to reach high level of performance.
Additional information
Data Sheet
Synchro drivers for Fibre pigtailed pulse pickers
| Model | Laser Repetition rate | Carrier frequency | RF power | Delay Range | Pulse width range | AO Models |
|---|---|---|---|---|---|---|
| PPKAc250-B-34-32-75,85 | 75-85MHz | 250 MHz | 2W | 32ns (0,25ns) | 32ns (0,25ns) | MT250-IR6-Fio-PM-Ic |
| PPKS250-B-34-32 | 30-65MHz | 250 MHz | 2W | 32ns (0,25ns) | 32ns (0,25ns) | MT250-IR6-Fio-PM-Ic |
| PPKS200-B-34-32 | 30-55MHz | 200 MHz | 2W | 32ns (0,25ns) | 32ns (0,25ns) | MT200-IR10-Fio-PM-Ic |
| PPKS200-B-34-128 | 5-55MHz | 200 MHz | 2W | 128ns (1ns) | 128ns (1ns) | MT200-IR10-Fio-PM-Ic |
| PPKS200-B-34-640 | 1-50MHz | 200 MHz | 2W | 640ns (5ns) | 640ns (5ns) | MT200-IR10-Fio-PM-Ic |
| PPKS80-B-34-640 | 1-20MHz | 80 MHz | 2W | 640ns (5ns) | 640ns (5ns) | MT80-IR30-Fio-PM-Ic2 / MT80-FIR40-Fio-PM |
Synchro drivers for Free space pulse pickers
| Model | Laser Repetition rate | Carrier frequency | RF power | Delay Range | Pulse width range | AO Models |
|---|---|---|---|---|---|---|
| PPKAc250-B-34-32-75,85 | 75-85MHz | 250 MHz | 2W | 32ns (0,25ns) | 32ns (0,25ns) | MT250-A0,12-1064 |
| PPKS250-B-34-32 | 0.1-65MHz | 250 MHz | 2W | 32ns (0,25ns) | 32ns (0,25ns) | MT250-A0,12-1064 |
| PPKS200-B-34-32 | 0.1-65MHz | 200 MHz | 2W | 32ns (0,25ns) | 32ns (0,25ns) | MT200-A0,4-1064 |
| PPKS200-B-34-128 | 0.1-65MHz | 200 MHz | 2W | 128ns (1ns) | 128ns (1ns) | MT200-A0,4-1064 |
| PPKS200-B-34-640 | 0.1-65MHz | 200 MHz | 2W | 640ns (5ns) | 640ns (5ns) | MT200-A0,4-1064 |
| PPKS80-B-34-640 | 0.1-65MHz | 80 MHz | 2W | 640ns (5ns) | 640ns (5ns) | MT80-A1-1064 / MT80-A0.4-2000 |
| PPKS80-B-42-640 | 0.1-65MHz | 80 MHz | 15W | 640ns (5ns) | 640ns (5ns) | MQ80-A0,7-L1030,1080 |
