AA propose a line of Acousto-optic Q-switches and associated RF drivers, for a wide range of applications. They are manufactured from the highest quality materials, with optimized hard coatings for high damage threshold and long term operation. All AA Q-switches are designed so as to optimize heat dissipation and beam stability with a unique glueing and mechanical technology which reduces stress during operation.
Additional information

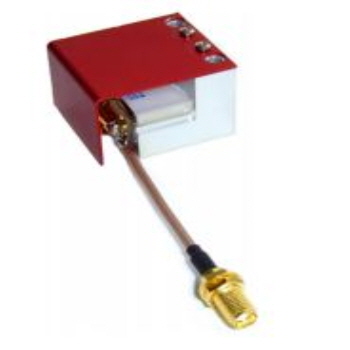

Air-cooled Q-Switches
Compact solutions for short cavities, or low gain cavities.
| Model | Material | Polarization | Carrier Freq. MHz | Aperture mm x mm | Losses % | Optional Length mm | Associated RF driver |
|---|---|---|---|---|---|---|---|
| QCQ40-A1,5-L1064-Z32 | QUARTZ | Linear | 40.68 | 1.5 x 2 | > 80 | 32 | QMODP0xx |
| QCQ80-A1,2-L1064-Z32 | QUARTZ | Linear | 80 | 1.2 x 2 | > 80 | 32 | QMODP0xx |
