A Bragg configuration gives a single first order output beam, which intensity is directly linked to the power of RF control signal, and which angle is directly linked to the RF frequency.
By varying the frequency, the output laser beam angle is modified. A deflector is used to scan a laser beam over a range of angles, or to control with accuracy the output angle of the laser beam. By varying the frequency, the first order beam is also frequency shifted by the amount of the RF carrier frequency: it acts like a variable frequency shifter.
The main parameters to qualify a deflector are 1. Deflection angle range and 2. Resolution.
The deflection angle range is the maximum angle variation of the laser beam: it is linked to the frequency range of the device. The resolution of a deflector is the number of distinct directions which can be ad- dressed by the deflector: it is linked to the deflection angle range and laser divergence.

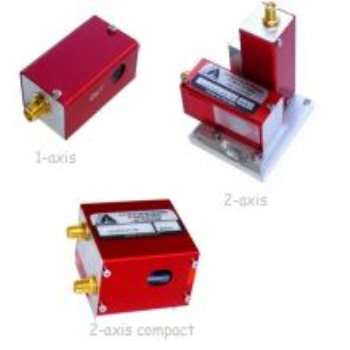

Two deflectors can be used in serie and at right angles to give full two-dimensional scanning.
Additional information
High Resolution
| Model | Material | Wavelength nm | Aperture mmxmm | Freq (Shift) MHz | Polarisation | Resolution T.DF | Deflexion angle range | Efficiency % | Associated RF drivers |
|---|---|---|---|---|---|---|---|---|---|
| DTSX-250 | TeO2 | 405-1550* | 4,5 x 4,5 | f(λ) | Linear | 300@633nm | 48@633nm | > 70 | DDSPAxx DRFAxx |
| DTSX-400 | TeO2 | 405-1550* | 7,5 x 7,5 | f(λ) | Linear | 500@633nm | 48@633nm | > 70 | DDSPAxx DRFAxx |
| DTSXY-250 | 2 Axis TeO2 | 405-1550* | 4,5 x 4,5 | f(λ) | Linear | 300x300@633nm | 41 x 41@532nm | > 45 | DDSPAxx DRFAxx |
| DTSXY-400 | 2 Axis TeO2 | 405-1550* | 7,5 x 7,5 | f(λ) | Linear | 500x500@633nm | 41 x 41@532nm | > 45 | DDSPAxx DRFAxx |
| DT230-B120A0,5-UV | TeO2 | 400-450 | 0,5 x 17,5 | 230+/-60 | Linear | 500 | 11,4@400nm | > 50 | DDSPAxx DRFAxx |
| DT230-B120A0,5-VIS | TeO2 | 450-670 | 0,5 x 17,5 | 230+/-60 | Linear | 500 | 15@532nm | > 50 | DDSPAxx DRFAxx |
Low Resolution
| Model | Material | Wavelength (nm) | Aperture mm² | Frequency shift (MHz) | Polarisation | Resolution TΔF | Deflexion angle (mrd) | Diffraction Efficiency (%)* | Associated RF drivers |
|---|---|---|---|---|---|---|---|---|---|
| MQ200-B30A1,5-244.266.Br | Fused Silica | 244-266 | 1.5 x 2 | 200+/-15 | Linear | 5 | 1,3@266nm | > 60 | DDSPAxx DRFAxx |
| MQ110-B30A1-UV | Fused Silica | 325-425 | 1 x 2 | 110+/-15 | Linear | 10 | 1.8@355nm | > 60 | DDSPAxx DRFAxx |
| MT200-B50A0,5-400.442 | TeO2 | 400-442 | 0,5 x 2 | 200+/-25 | Linear/random | 23 | 5,4 @458nm | > 80 | DDSPAxx DRFAxx |
| MT200-B100A0,5-VIS | TeO2 | 450-700 | 0,5 x 2 | 200+/-50 | Linear/random | 47 | 12,6@532nm | > 70@633nm | DDSPAxx DRFAxx |
| MT110-B50A1-VIS | TeO2 | 450-700 | 1 x 2 | 110+/-25 | Linear/random | 23 | 6,3@532nm | > 65@633nm | DDSPAxx DRFAxx |
| MT110-B50A1,5-VIS | TeO2 | 450-700 | 1,5 x 2 | 110+/-25 | Linear/random | 23 | 6,3@532nm | > 65@633nm | DDSPAxx DRFAxx |
| MT80-B30A1-VIS | TeO2 | 450-700 | 1 x 2 | 80+/-15 | Linear/random | 14 | 3,8@532nm | > 65 | DDSPAxx DRFAxx |
| MT80-B30A1,5-VIS | TeO2 | 450-700 | 1,5 x 2 | 80+/-15 | Linear/random | 14 | 3,8@532nm | >65 | DDSPAxx DRFAxx |
| MT200-B100A0,5-800 | TeO2 | 750-950 | 0,5 x 2 | 200+/-50 | Linear/random | 47 | 18,6 @785nm | > 60 | DDSPAxx DRFAxx |
| MT200-B40A1-800 | TeO2 | 750-950 | 1 x 2 | 200+/-20 | Linear/random | 19 | 7,4 @800nm | > 70@785nm | DDSPAxx DRFAxx |
| MT350-B120A0.12-800 | TeO2 | 750-950 | 0,12 x 1 | 350+/-60 | Linear/random | 28 | 22,8@800nm | > 60 | DDSPAxx DRFAxx |
| MT250-B100A0,5-800 | TeO2 | 750-950 | 0,5 x 2 | 250+/-50 | Linear/random | 47 | 19@800nm | > 60 | DDSPAxx DRFAxx |
| MT200-B100A0,5-800 | TeO2 | 750-950 | 0,5 x 2 | 200+/-50 | Linear/random | 47 | 19@800nm | > 60@785nm | DDSPAxx DRFAxx |
| MT110-B50A1-IR | TeO2 | 700-1100 | 1 x 2 | 110+/-25 | Linear/random | 23 | 9,5@800nm | > 60@785nm | DDSPAxx DRFAxx |
| MT110-B50A1,5-IR | TeO2 | 700-1100 | 1,5 x 2 | 110+/-25 | Linear/random | 23 | 9,5@800nm | > 60@785nm | DDSPAxx DRFAxx |
| MT80-B30A1-IR | TeO2 | 700-1100 | 1 x 2 | 80+/-15 | Linear/random | 14 | 5,7@800nm | > 70@785nm | DDSPAxx DRFAxx |
| MT80-B30A1,5-IR | TeO2 | 700-1100 | 1,5 x 2 | 80+/-15 | Linear/random | 14 | 5,7@800nm | > 70@765nm | DDSPAxx DRFAxx |
| MT200-B100A0,5-1064 | TeO2 | 980-1100 | 0,4 x 2 | 200+/-50 | Linear/random | 47 | 25,3@1064nm | > 35 | DDSPAxx DRFAxx |
| MT200-B100A0,2-1064 | TeO2 | 980-1100 | 0,2 x 1 | 200+/-50 | Linear/random | 47 | 25,3@1064nm | > 60 | DDSPAxx DRFAxx |
| MT110-B50A1-1064 | TeO2 | 980-1100 | 1 x 2 | 110+/-25 | Linear/random | 23 | 12,6@1064nm | > 55 | DDSPAxx DRFAxx |
| MT80-B30A1-1064 | TeO2 | 980-1100 | 1 x 2 | 80+/-15 | Linear/random | 14 | 7,6@1064nm | > 60 | DDSPAxx DRFAxx |
| MT80-B30A1,5-1064 | TeO2 | 980-1100 | 1,5 x 2 | 80+/-15 | Linear/random | 14 | 7,6@1064nm | > 60 | DDSPAxx DRFAxx |
결제 완료 후 15일 이내에 배송될 예정입니다.
