High-Voltage Drivers
QUBIG offers dedicated High-Voltage (HV) drivers which match and enhance the features of all dc-coupled modulators. High voltages at high repetition rates without sacrificing high precision/stability are highlighting characteristics of our devices.
Depending on the specific requirements the customer can choose between high-voltage, ultra-fast pulse generators with rise/fall times down to 4ns. Our high-voltage linear amplifiers empower customers to generate arbitrary waveforms from DC up to 100MHz.
GENERAL PRODUCT OVERVIEW
HVLA - Series
HIGH-VOLTAGE LINEAR AMPLIFIER
Bandwidth: DC up to 100MHz
Max. operation voltage: up to +/- 1.5kV
Features: high slew rate, Python I/F
Application: Q-switch, Intensity ctrl.

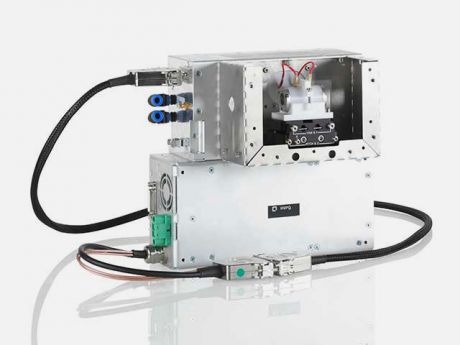

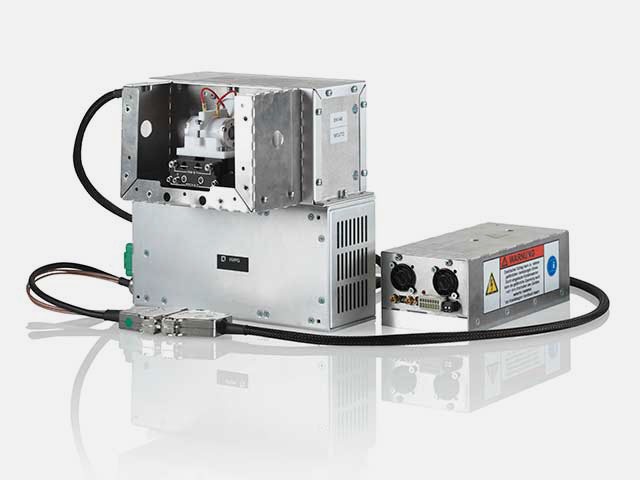

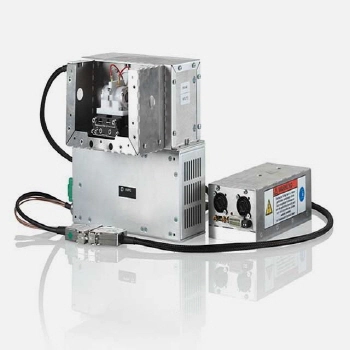

HVPG - Series
HIGH-VOLTAGE PULSE GENERATORS
Bandwidth: up to 2MHz (10MHz burst)
Max. operation voltage: up to 13kV
Rise/fall time: down to 4ns/4ns
Application: Q-switch, Pulse picker
