Name: 2D BEAM SPLITTER
Availability: InStock

알림

Home
Beam Shaping & Splitting

2D BEAM SPLITTER

⠀⠀⠀⠀⠀⠀⠀⠀⠀

Single Mode or Multimode input beam laser
High power threshold
Glass or plastic materials
Accurate angle separation
Insensitive to X-Y-Z displacements
Custom separation angle and shape
Any input beam shape
Wavelengths from UV to IR
Optional Ar/Ar coating

MATERIALS	Fused Silica, Sapphire, ZnSe, Germanium, Plastic
WAVELENGTH RANGE	193nm to 10.6um
DOE DESIGN	2-level (binary) to 16-level
SEPARATION ANGLE	0.001° to 80° (larger angles require additional optics)
DIFFRACTION EFFICIENCY	64% - 98%
ELEMENT SIZE	Few mm to 150mm
COATING (OPTIONAL)	AR/AR Coating
CUSTOM DESIGN	Almost any symmetry or arbitrary shape

MATERIALS	Fused Silica, Sapphire, ZnSe, Germanium, Plastic
WAVELENGTH RANGE	193nm to 10.6um
DOE DESIGN	2-level (binary) to 16-level
SEPARATION ANGLE	0.001° to 80° (larger angles require additional optics)
DIFFRACTION EFFICIENCY	64% - 98%
ELEMENT SIZE	Few mm to 150mm
COATING (OPTIONAL)	AR/AR Coating
CUSTOM DESIGN	Almost any symmetry or arbitrary shape

FEATURES:

APPLICATIONS:

ACCESORIES

DOE TUNER MODULE

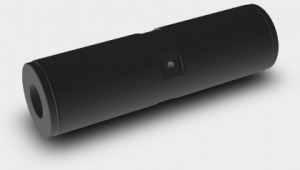

UNDESIRED DIFFRACTED ORDERS BLOCKER (UDOB)

DIELECTRIC MASK

DOE EXPANDER

MOUNTING ADAPTER

FEATURES:

APPLICATIONS:

ACCESORIES

DOE TUNER MODULE

UNDESIRED DIFFRACTED ORDERS BLOCKER (UDOB)

DIELECTRIC MASK

DOE EXPANDER

MOUNTING ADAPTER

PN	λ [nm]	Number of Spots	Separation Angle [deg]	θf [deg]	Availability	Remarks
MS-030-I-Y-A	1064	2x2	1.00x1.00	1.00x1.00	In Stock	High Efficiency
MS-049-I-Y-A	1064	7x7	0.70x0.70	4.21x4.21	In Stock
MS-219-I-Y-A	1064	7x7	0.70x0.70	4.21x4.21	In Stock
MS-202-I-Y-A	1064	4x4	1.39x1.39	4.16x4.16	In Stock
MS-203-I-Y-A	1064	2x2	4.00x4.00	4.00x4.00	In Stock
MS-204-I-Y-A	1064	2x2	0.25x0.25	0.25x0.25	In Stock
MS-211-I-Y-A	1064	7x7	0.19x0.19	1.14x1.14	In Stock
MS-215-I-Y-A	1064	5x5	1.00x1.00	4.00x4.00	In Stock
MS-216-I-Y-A	1064	4x4	1.39x1.39	4.16x4.16	In Stock
MS-254-I-Y-A	1064	9x9	0.21x0.21	1.65x1.65	In Stock
MS-259-I-Y-X	1064	9x9	0.12x0.12	0.96x0.96	In Stock
MS-286-I-Y-A	1064	3x4	1.27x0.85	2.54x2.54	In Stock
MS-305-I-Y-X	1064	5x5	0.64x0.64	2.54x2.54	In Stock
MS-306-I-Y-A	1064	5x6	0.64x0.51	2.54x2.54	In Stock
MS-319-I-Y-A	1064	2x2	13.58x13.58	13.58x13.58	In Stock
MS-341-I-Y-A	1064	4x4	0.85x0.85	2.54x2.54	In Stock
MS-397-I-Y-A	1064	16x16	0.33x0.33	4.91x4.91	In Stock
MS-440-I-Y-X	1064	19x19	0.12x0.12	2.15x2.15	In Stock
MS-443-I-Y-X	1064	3x3	0.060x0.060	0.12x0.12	In Stock
MS-571-I-Y-X	1064	7x7	0.074x0.074	0.45x0.45	In Stock
MS-581-I-N-X	1064	3x3	0.57x0.57	1.14x1.14	In Stock
MS-595-I-Y-A	1064	2x2	13.58x13.58	13.58x13.58	In Stock
MS-651-I-Y-A	1064	10x10	3.06x3.06	27.81x27.81	In Stock
MS-677-I-Y-A	1064	10x10	0.93x0.93	8.42x8.42	In Stock
MS-684-I-Y-A	1064	2x2	1.76x1.76	1.76x1.76	In Stock	High Efficiency
MS-701-I-Y-A	1064	10x10	0.23x0.23	2.05x2.05	In Stock
MS-727-I-Y-N	1064	9x9	0.50x0.50	4.00x4.00	In Stock
MS-728-I-Y-N	1064	5x5	1.00x1.00	4.00x4.00	In Stock
MS-737-I-Y-A	1064	2x2	2.31x2.31	2.31x2.31	In Stock	High Efficiency (HEQS)
MS-745-I-Y-A	1064	8x8	0.50x0.50	3.50x3.50	In Stock
MS-773-I-Y-A	1064	10x10	0.93x0.93	8.42x8.42	In Stock
MS-775-I-N-A	1064	2x2	2.00x2.00	2.00x2.00	In Stock
MS-776-I-N-A	1064	2x2	4.00x4.00	4.00x4.00	In Stock
MS-779-I-Y-A	1064	8x8	0.36x0.36	2.49x2.49	In Stock
MS-025-I-Y-A	1064	5x5	1.00x1.00	4.00x4.00	6 weeks
MS-027-I-Y-A	1064	9x9	0.50x0.50	4.00x4.00	6 weeks
MS-212-I-Y-X	1064	15x15	0.50x0.50	7.00x7.00	6 weeks
MS-217-I-Y-X	1064	5x5	1.94x1.94	7.75x7.75	6 weeks
MS-218-I-Y-A	1064	9x9	0.50x0.50	4.00x4.00	6 weeks
MS-220-I-Y-A	1064	5x5	1.39x1.39	5.54x5.54	6 weeks
MS-225-I-Y-A	1064	9x9	0.12x0.12	0.96x0.96	6 weeks
MS-229-I-Y-A	1064	5x5	0.30x0.30	1.21x1.21	6 weeks
MS-231-I-Y-X	1064	7	0.13	0.26	6 weeks	hexagonal
MS-232-I-Y-A	1064	9x9	0.15x0.15	1.20x1.20	6 weeks
MS-235-I-Y-X	1064	5x5	2.68x2.68	10.73x10.73	6 weeks
MS-236-I-Y-A	1064	5x5	2.68x2.68	10.73x10.73	6 weeks
MS-237-I-Y-X	1064	7x7	2.11x2.11	12.69x12.69	6 weeks
MS-238-I-Y-X	1064	7x7	2.11x2.11	12.69x12.69	6 weeks
MS-239-I-Y-A	1064	9x9	0.21x0.21	1.65x1.65	6 weeks
MS-240-I-Y-A	1064	2x2	13.58x13.58	13.58x13.58	6 weeks
MS-241-I-Y-A	1064	8x8	1.09x1.09	7.64x7.64	6 weeks
MS-249-I-Y-A	1064	9x9	0.50x0.50	4.00x4.00	6 weeks
MS-250-I-Y-X	1064	37	0.092	0.55	6 weeks	hexagonal
MS-256-I-Y-A	1064	7x7	0.19x0.19	1.14x1.14	6 weeks
MS-260-I-Y-A	1064	4x4	0.57x0.57	1.72x1.72	6 weeks
MS-261-I-Y-X	1064	3x3	0.57x0.57	1.14x1.14	6 weeks
MS-267-I-Y-A	1064	4x4	0.94x0.94	2.81x2.81	6 weeks
MS-273-I-Y-X	1064	7x7	0.70x0.70	4.21x4.21	6 weeks
MS-274-I-Y-X	1064	9x9	0.50x0.50	4.00x4.00	6 weeks
MS-277-I-Y-X	1064	19x19	0.12x0.12	2.15x2.15	6 weeks
MS-280-I-Y-X	1064	3x3	0.36x0.36	0.72x0.72	6 weeks **
MS-281-I-Y-X	1064	9x9	0.50x0.50	4.00x4.00	6 weeks **
MS-284-I-Y-X	1064	3x3	0.36x0.36	0.72x0.72	6 weeks
MS-285-I-Y-X	1064	3x3	1.27x1.27	2.54x2.54	6 weeks
MS-287-I-Y-X	1064	3x5	1.27x0.64	2.54x2.54	6 weeks
MS-288-I-Y-X	1064	3x7	1.27x0.42	2.54x2.54	6 weeks
MS-289-I-Y-A	1064	5x5	2.20x2.20	8.80x8.80	6 weeks
MS-290-I-Y-X	1064	5x5	2.61x2.61	10.45x10.45	6 weeks
MS-292-I-Y-X	1064	9x9		0.061x0.061	6 weeks	Frame
MS-294-I-Y-X	1064	3x3	0.36x0.36	0.72x0.72	6 weeks **
MS-295-I-Y-X	1064	9x9	0.50x0.50	4.00x4.00	6 weeks **
MS-299-I-Y-X	1064	7x7	2.11x2.11	12.69x12.69	6 weeks
MS-300-I-Y-A	1064	8x8	0.57x0.57	3.98x3.98	6 weeks
MS-303-I-Y-A	1064	5x5	2.20x2.20	8.80x8.80	6 weeks	with cut-off
MS-321-I-Y-X	1064	5x5	3.23x3.23	12.95x12.95	6 weeks
MS-324-I-Y-X	1064	5x5	3.81x2.87	15.29x11.49	6 weeks
MS-326-I-Y-X	1064	3x3	7.64x5.75	15.29x11.49	6 weeks
MS-337-I-Y-X	1064	77		5.73	6 weeks	MS X-Men
MS-339-I-Y-X	1064	3	0.47	0.47	6 weeks	Triangle MS (not equal power)
MS-340-I-Y-X	1064	21x21	0.080x0.080	1.60x1.60	6 weeks
MS-342-I-Y-X	1064	7x7	1.40x1.40	8.42x8.42	6 weeks
MS-353-I-Y-A	1064	16x16	0.33x0.33	4.91x4.91	6 weeks
MS-354-I-Y-A	1064	2x2	0.50x0.50	0.50x0.50	6 weeks
MS-356-I-Y-A	1064	12		9.15	6 weeks	MS Circle
MS-358-I-Y-X	1064	9x9	1.09x1.09	8.76x8.76	6 weeks
MS-359-I-Y-A	1064	11x11	0.10x0.10	1.00x1.00	6 weeks
MS-360-I-Y-X	1064	99x99	0.10x0.10	9.83x9.83	6 weeks	Not standard MS
MS-362-I-Y-X	1064	3x3	3.27x5.68	6.55x11.36	6 weeks
MS-363-I-Y-X	1064	101x101		40.66x40.66	6 weeks	random MS
MS-367-I-Y-X	1064	21x21	0.090x0.090	1.81x1.81	6 weeks
MS-376-I-Y-A	1064	9x9	0.21x0.21	1.65x1.65	6 weeks
MS-377-I-Y-A	1064	9x9	0.50x0.50	4.00x4.00	6 weeks
MS-382-I-Y-A	1064	2x2	7.63x7.63	7.63x7.63	6 weeks
MS-383-I-Y-A	1064	76	0.5	4	6 weeks	Hexagonal Lattice
MS-384-I-Y-A	1064	8x8	0.57x0.57	3.98x3.98	6 weeks
MS-386-I-Y-X	1064	5	13.58	13.58	6 weeks	MS Dice
MS-387-I-Y-A	1064	9x9	0.50x0.50	4.00x4.00	6 weeks
MS-388-I-Y-A	1064	76	0.5	4	6 weeks	Hexagonal Lattice
MS-393-I-Y-X	1064	9x9	0.70x0.70	5.61x5.61	6 weeks
MS-394-I-Y-A	1064	9x9	0.19x0.19	1.52x1.52	6 weeks
MS-395-I-Y-X	1064	37	0.33	1.98	6 weeks	hexagonal (head 120deg)
MS-402-I-Y-A	1064	11x11	0.32x0.32	3.20x3.20	6 weeks
MS-403-I-Y-X	1064	11x11	0.32x0.32	3.20x3.20	6 weeks
MS-404-I-Y-X	1064	81x81		18.37x18.37	6 weeks	random MS
MS-405-I-Y-X	1064	119x119		18.37x18.37	6 weeks	random MS
MS-409-I-Y-A	1064	10x10	0.93x0.93	8.42x8.42	6 weeks
MS-410-I-Y-A	1064	18x18	0.49x0.49	8.42x8.42	6 weeks **
MS-411-I-Y-A	1064	128x64	0.16x0.16	20.68x10.38	6 weeks
MS-412-I-Y-A	1064	128x64	0.060x0.033	7.62x2.08	6 weeks
MS-413-I-Y-A	1064	64x64	0.48x0.48	30.76x30.76	6 weeks
MS-414-I-Y-X	1064	15x15	0.50x0.50	7.00x7.00	6 weeks
MS-415-I-Y-A	1064	6x6	0.40x0.40	2.00x2.00	6 weeks
MS-416-I-Y-X	1064	3	1.04	1.04	6 weeks	Triangle MS (side angle)
MS-422-I-Y-X	1064	21x21		18.38x18.38	6 weeks	random MS
MS-423-I-Y-X	1064	41x41		18.41x18.41	6 weeks	random MS
MS-424-I-Y-X	1064	61x61		18.37x18.37	6 weeks	random MS
MS-426-I-Y-A	1064	6x6	1.15x1.15	5.75x5.75	6 weeks
MS-427-I-Y-A	1064	6x6	0.79x0.79	3.98x3.98	6 weeks
MS-429-I-Y-A	1064	5x5	1.00x1.00	4.00x4.00	6 weeks
MS-430-I-Y-A	1064	9x9	0.50x0.50	4.00x4.00	6 weeks
MS-434-I-Y-X	1064	5	1	1	6 weeks	MS Dice
MS-437-I-Y-A	1064	5x4	0.98x1.01	3.93x3.02	6 weeks
MS-441-I-Y-X	1064	13x13	0.33x0.33	3.98x3.98	6 weeks
MS-444-I-Y-A	1064	2x3	0.90x0.52	0.90x1.04	6 weeks
MS-445-I-Y-A	1064	2x2	1.42x1.42	1.42x1.42	6 weeks
MS-446-I-Y-A	1064	8x8	1.09x1.09	7.64x7.64	6 weeks
MS-452-I-Y-N	1064	3x11	0.033x0.11	0.067x1.13	6 weeks
MS-458-I-Y-X	1064	3x3	0.50x0.50	1.00x1.00	6 weeks
MS-459-I-Y-AA	1064	4x4	1.94x1.94	5.83x5.83	6 weeks
MS-460-I-Y-A	1064	6x8	0.50x0.50	2.50x3.50	6 weeks
MS-461-I-Y-X	1064	15x15	0.31x0.31	4.29x4.29	6 weeks
MS-462-I-Y-X	1064	5x33	1.18x0.59	4.72x18.96	6 weeks
MS-471-I-Y-X	1064	3	3	3	6 weeks	Triangle MS (side angle)
MS-472-I-Y-A	1064	2x3	2.60x1.50	2.60x3.00	6 weeks
MS-476-I-Y-X	1064	7x7	2.11x2.11	12.69x12.69	6 weeks
MS-478-I-Y-A	1064	2x2	2.77x2.77	2.77x2.77	6 weeks
MS-479-I-Y-A	1064	8x8	0.69x0.69	4.85x4.85	6 weeks
MS-480-I-Y-X	1064	3		0.21	6 weeks	Triangle MS (side angle)
MS-500-I-Y-A	1064	10x10	0.93x0.93	8.42x8.42	6 weeks
MS-503-I-Y-A	1064	2x2	8.72x8.72	8.72x8.72	6 weeks	Intensity 100/50
MS-504-I-Y-A	1064	16x16	0.20x0.20	3.01x3.01	6 weeks
MS-515-I-Y-A	1064	32		5	6 weeks	MS Circle
MS-534-I-Y-A	1064	64x64	0.044x0.044	2.77x2.77	6 weeks
MS-541-I-Y-A	1064	64x64	0.066x0.066	4.16x4.16	6 weeks
MS-544-I-Y-X	1064	7x7	0.70x0.70	4.21x4.21	6 weeks
MS-546-I-Y-A	1064	2x2	7.96x7.96	7.96x7.96	6 weeks
MS-550-I-Y-X	1064	3x5	2.67x2.01	5.35x8.05	6 weeks
MS-552-I-Y-X	1064	3x5	2.67x2.01	5.35x8.05	6 weeks
MS-553-I-Y-A	1064	2x2	9.21x9.21	9.21x9.21	6 weeks
MS-561-I-Y-A	1064	2x2	2.00x2.00	2.00x2.00	6 weeks
MS-562-I-Y-A	1064	2x2	0.41x0.41	0.41x0.41	6 weeks
MS-565-I-Y-A	1064	2x2	1.52x1.52	1.52x1.52	6 weeks
MS-566-I-Y-A	1064	2x2	0.68x0.68	0.68x0.68	6 weeks
MS-567-I-Y-A	1064	2x2	0.29x0.29	0.29x0.29	6 weeks
MS-576-I-Y-A	1064	2x2	0.50x0.50	0.50x0.50	6 weeks
MS-578-I-Y-X	1064	11x11	0.26x0.26	2.58x2.58	6 weeks
MS-581-I-Y-X	1064	3x3	0.57x0.57	1.14x1.14	6 weeks
MS-583-I-Y-X	1064	15x15	0.50x0.50	7.00x7.00	6 weeks
MS-584-I-Y-X	1064	3x9	0.52x0.19	1.04x1.54	6 weeks
MS-585-I-Y-X	1064	3x3	0.30x0.30	0.59x0.59	6 weeks
MS-586-I-Y-A	1064	4x4	2.90x2.90	8.72x8.72	6 weeks
MS-587-I-Y-X	1064	7	0.26	0.52	6 weeks	hexagonal
MS-591-I-Y-A	1064	6x6	0.23x0.23	1.15x1.15	6 weeks
MS-597-I-Y-X	1064	3x3	0.031x0.031	0.062x0.062	6 weeks
MS-599-I-Y-X	1064	7	0.031	0.062	6 weeks	hexagonal
MS-607-I-Y-X	1064	7	0.29	0.57	6 weeks	hexagonal
MS-608-I-Y-X	1064	7	0.57	1.15	6 weeks	hexagonal
MS-609-I-Y-X	1064	7	1.43	2.86	6 weeks	hexagonal
MS-610-I-Y-X	1064	7	2.87	5.74	6 weeks	hexagonal
MS-611-I-Y-X	1064	7	5.74	11.49	6 weeks	hexagonal
MS-614-I-Y-X	1064	7	5.97	11.96	6 weeks	hexagonal
MS-616-I-Y-A	1064	12x12	0.33x0.33	3.63x3.63	6 weeks
MS-617-I-Y-A	1064	5x10	0.068x0.068	0.27x0.61	6 weeks
MS-618-I-Y-X	1064	19	0.57	2.29	6 weeks	hexagonal
MS-619-I-Y-X	1064	19	1.43	5.73	6 weeks	hexagonal
MS-620-I-Y-X	1064	37	0.57	3.44	6 weeks	hexagonal
MS-621-I-Y-X	1064	37	1.43	8.6	6 weeks	hexagonal
MS-624-I-Y-A	1064	3x15	0.39x0.39	0.77x5.40	6 weeks
MS-634-I-Y-A	1064	9x9	0.19x0.19	1.52x1.52	6 weeks
MS-639-I-Y-A	1064	28x28	0.21x0.21	5.58x5.58	6 weeks
MS-644-I-Y-X	1064	9x15	1.42x1.42	11.36x19.95	6 weeks
MS-648-I-Y-A	1064	4x4	9.18x9.18	27.77x27.77	6 weeks
MS-649-I-Y-A	1064	6x6	5.51x5.51	27.79x27.79	6 weeks
MS-650-I-Y-A	1064	8x8	3.93x3.93	27.80x27.80	6 weeks
MS-664-I-Y-A	1064	6x6	0.40x0.40	2.00x2.00	6 weeks
MS-678-I-Y-A	1064	18x18	0.49x0.49	8.42x8.42	6 weeks
MS-679-I-Y-A	1064	14x14	0.61x0.61	7.88x7.88	6 weeks
MS-692-I-Y-X	1064	3x5	0.086x0.052	0.17x0.21	6 weeks
MS-693-I-Y-A	1064	32x32	0.11x0.11	3.43x3.43	6 weeks
MS-694-I-Y-A	1064	32x32	0.22x0.22	6.86x6.86	6 weeks
MS-695-I-Y-A	1064	2x2	0.44x0.47	0.44x0.47	6 weeks
MS-696-I-Y-A	1064	4x4	0.44x0.47	1.33x1.42	6 weeks
MS-698-I-Y-A	1064	3x6	0.042x0.037	0.084x0.19	6 weeks
MS-699-I-Y-A	1064	2x2	1.05x1.05	1.05x1.05	6 weeks
MS-706-I-Y-L	1064	3x3	0.57x0.57	1.14x1.14	6 weeks
MS-711-I-Y-X	1064	3x3	0.028x0.028	0.055x0.055	6 weeks
MS-722-I-Y-A	1064	4x4	5.08x3.81	15.29x11.45	6 weeks
MS-723-I-Y-A	1064	2x3	0.072x0.084	0.072x0.17	6 weeks
MS-724-I-Y-A	1064	2x2	2.77x2.77	2.77x2.77	6 weeks
MS-733-I-Y-A	1064	10x10	1.79x1.79	16.12x16.12	6 weeks
MS-742-I-Y-A	1064	4x4	0.57x0.57	1.72x1.72	6 weeks
MS-743-I-Y-X	1064	255x255	0.039x0.039	10.01x10.01	6 weeks
MS-744-I-Y-A	1064	16x16	0.20x0.20	3.01x3.01	6 weeks
MS-775-I-Y-A	1064	2x2	2.00x2.00	2.00x2.00	6 weeks
MS-776-I-Y-A	1064	2x2	4.00x4.00	4.00x4.00	6 weeks
MS-785-I-Y-A	1064	8	0.022	NaN	6 weeks	MS Circle
MS-806-I-Y-X	1064	7x7	0.70x0.70	4.21x4.21	6 weeks
MS-808-I-Y-A	1064	9x9	0.50x0.50	4.00x4.00	6 weeks
MS-375-I-Y-A	1064	10x10	0.069x0.069	0.62x0.62	7 weeks	High Efficiency
MS-477-I-Y-A	1064	4x4	0.21x0.21	0.64x0.64	7 weeks	High Efficiency
MS-481-I-Y-A	1064	2x2	4.00x4.00	4.00x4.00	7 weeks	High Efficiency
MS-563-I-Y-A	1064	2x2	1.41x1.41	1.41x1.41	7 weeks	High Efficiency
MS-564-I-Y-A	1064	2x2	0.29x0.29	0.29x0.29	7 weeks	High Efficiency
MS-568-I-Y-A	1064	2x2	1.08x1.08	1.08x1.08	7 weeks	High Efficiency
MS-569-I-Y-A	1064	2x2	0.48x0.48	0.48x0.48	7 weeks	High Efficiency
MS-570-I-Y-A	1064	2x2	0.21x0.21	0.21x0.21	7 weeks	High Efficiency
MS-574-I-Y-A	1064	2x2	0.35x0.35	0.35x0.35	7 weeks	High Efficiency
MS-606-I-Y-X	1064	9x15	1.67x1.67	13.39x23.55	7 weeks
MS-615-I-Y-A	1064	20x20	0.23x0.23	4.32x4.32	7 weeks
MS-640-I-Y-A	1064	6x6	0.21x0.21	1.06x1.06	7 weeks
MS-658-I-Y-A	1064	2x2	0.38x0.38	0.38x0.38	7 weeks	High Efficiency (HEQS)
MS-667-I-Y-A	1064	64x64	0.13x0.13	8.31x8.31	7 weeks
MS-697-I-Y-A	1064	2x3	0.021x0.021	0.021x0.042	7 weeks	High Efficiency
MS-700-I-Y-A	1064	3x5	6.83x7.11	13.66x28.65	7 weeks
MS-800-I-Y-A	1064	2x2	4.00x4.00	4.00x4.00	7 weeks	High Efficiency (HEQS)
MS-792-I-Y-A	1064	2x2	7.91x7.91	7.91x7.91	8 weeks	High Efficiency
MS-246-I-Y-X	1064	29x29	1.43x1.43	41.04x41.04	9 weeks
MS-325-I-Y-A	1064	4x4	5.08x3.81	15.29x11.45	9 weeks
MS-328-I-Y-L	1064	19x13	0.85x0.95	15.26x11.47	9 weeks	Cross MS
MS-532-I-Y-A	1064	128x128	0.24x0.24	30.76x30.76	9 weeks
MS-558-I-Y-A	1064	2x2	28.52x28.52	28.52x28.52	9 weeks	MS Dice
MS-559-I-Y-A	1064	2x2	28.52x28.52	28.52x28.52	9 weeks
MS-594-I-Y-A	1064	28x28	0.23x0.23	6.15x6.15	9 weeks
MS-623-I-Y-A	1064	10x10	1.87x1.87	16.88x16.88	9 weeks
MS-626-I-Y-A	1064	6x6	0.23x0.23	1.14x1.14	9 weeks
MS-627-I-Y-A	1064	10x10	0.23x0.23	2.05x2.05	9 weeks
MS-633-I-Y-X	1064	19x19	1.09x1.09	19.69x19.69	9 weeks
