Name: 1D BEAM SPLITTER
Availability: InStock

알림

Home
Beam Shaping & Splitting

1D BEAM SPLITTER

⠀⠀⠀⠀⠀⠀⠀⠀⠀

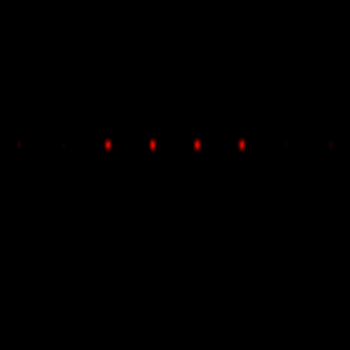

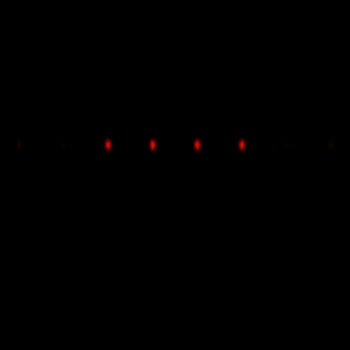

Single Mode or Multimode input beam laser
High power threshold
Glass or plastic materials
Accurate angle separation
Insensitive to X-Y-Z displacements
Custom separation angle and shape
Any input beam shape
Wavelengths from UV to IR
Optional Ar/Ar coating

MATERIALS	Fused Silica, Sapphire, ZnSe, Germanium, Plastic
WAVELENGTH RANGE	193nm to 10.6um
DOE DESIGN	2-level (binary) to 16-level
FULL ANGLE	0.001° to 80° (larger angles require additional optics)
DIFFRACTION EFFICIENCY	64% - 98%
ELEMENT SIZE	Few mm to 150mm
COATING (OPTIONAL)	AR/AR Coating
CUSTOM DESIGN	Almost any symmetry or arbitrary shape

MATERIALS	Fused Silica, Sapphire, ZnSe, Germanium, Plastic
WAVELENGTH RANGE	193nm to 10.6um
DOE DESIGN	2-level (binary) to 16-level
FULL ANGLE	0.001° to 80° (larger angles require additional optics)
DIFFRACTION EFFICIENCY	64% - 98%
ELEMENT SIZE	Few mm to 150mm
COATING (OPTIONAL)	AR/AR Coating
CUSTOM DESIGN	Almost any symmetry or arbitrary shape

FEATURES:

APPLICATIONS:

ACCESSORIES

DOE TUNER MODULE

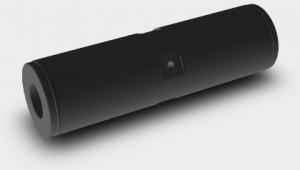

UNDESIRED DIFFRACTED ORDERS BLOCKER (UDOB)

DIELECTRIC MASK

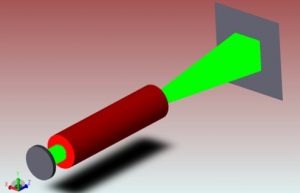

DOE EXPANDER

MOUNTING ADAPTER

FEATURES:

APPLICATIONS:

ACCESSORIES

DOE TUNER MODULE

UNDESIRED DIFFRACTED ORDERS BLOCKER (UDOB)

DIELECTRIC MASK

DOE EXPANDER

MOUNTING ADAPTER

PN	λ [nm]	Number of Spots	Separation Angle [deg]	θf [deg]	Availability	Remarks
DS-006-I-Y-A	1064	2	2.54	2.54	In Stock
DS-184-I-Y-A	1064	2	0.094	0.094	In Stock
DS-189-I-Y-A	1064	2	0.5	0.5	In Stock
DS-198-I-Y-A	1064	2	7.63	7.63	In Stock
DS-215-I-Y-A	1064	2	3.39	3.39	In Stock
DS-217-I-Y-A	1064	2	0.27	0.27	In Stock
DS-224-I-Y-A	1064	2	0.12	0.12	In Stock
DS-237-I-N-A	1064	2	18.41	18.41	In Stock
DS-241-I-Y-A	1064	2	0.41	0.41	In Stock
DS-256-I-Y-A	1064	2	0.45	0.45	In Stock
DS-257-I-Y-A	1064	2	0.23	0.23	In Stock
DS-265-I-Y-A	1064	2	0.36	0.36	In Stock
DS-269-I-Y-A	1064	2	0.14	0.14	In Stock	High Efficiency (HEDS)
DS-273-I-Y-A	1064	2	0.32	0.32	In Stock
DS-277-I-Y-A	1064	2	4.1	4.1	In Stock
DS-278-I-N-A	1064	2	5.91	5.91	In Stock
DS-278-I-Y-A	1064	2	5.91	5.91	In Stock
DS-283-I-Y-A	1064	2	2.54	2.54	In Stock
DS-287-I-Y-A	1064	2	11.23	11.23	In Stock
MS-022-I-Y-X	1064	15	0.028	0.4	In Stock	High Efficiency
MS-255-I-Y-X	1064	101	0.057	5.73	In Stock
MS-268-I-Y-X	1064	19	0.15	2.7	In Stock
MS-269-I-Y-X	1064	25	0.11	2.64	In Stock
MS-272-I-Y-N	1064	7	0.19	1.14	In Stock
MS-333-I-N-A	1064	10	0.76	6.85	In Stock
MS-385-I-Y-A	1064	6	0.76	3.8	In Stock
MS-399-I-Y-A	1064	4	0.14	0.43	In Stock
MS-401-I-Y-A	1064	16	0.14	2.15	In Stock
MS-455-I-Y-A	1064	19	0.38	6.86	In Stock
MS-475-I-Y-A	1064	6	0.4	2	In Stock
MS-512-I-Y-X	1064	33	0.036	1.14	In Stock
MS-555-I-Y-X	1064	5	0.54	2.18	In Stock
MS-665-I-Y-A	1064	8	0.071	0.5	In Stock
MS-666-I-Y-A	1064	4	1.15	3.45	In Stock	High Efficiency
MS-734-I-Y-A	1064	6	0.024	0.12	In Stock	High Efficiency
MS-786-I-Y-X	1064	11	0.23	2.29	In Stock
TS-216-I-Y-A	1064	3	0.46	0.92	In Stock
TS-225-I-Y-A	1064	3	0.072	0.14	In Stock
TS-265-I-Y-A	1064	3	0.042	0.084	In Stock
DS-001-I-Y-A	1064	2	0.14	0.14	6 weeks
DS-002-I-Y-A	1064	2	0.27	0.27	6 weeks
DS-025-I-Y-A	1064	2	0.15	0.15	6 weeks
DS-026-I-Y-A	1064	2	0.099	0.099	6 weeks
DS-029-I-Y-A	1064	2	0.099	0.099	6 weeks
DS-033-I-Y-A	1064	2	10.17	10.17	6 weeks
DS-034-I-Y-A	1064	2	0.038	0.038	6 weeks
DS-180-I-Y-A	1064	2	0.032	0.032	6 weeks
DS-181-I-Y-A	1064	2	0.032	0.032	6 weeks
DS-182-I-Y-A	1064	2	0.076	0.076	6 weeks
DS-183-I-Y-A	1064	2	0.076	0.076	6 weeks
DS-185-I-Y-A	1064	2	0.14	0.14	6 weeks
DS-186-I-Y-A	1064	2	0.14	0.14	6 weeks
DS-187-I-Y-A	1064	2	0.18	0.18	6 weeks
DS-188-I-Y-A	1064	2	0.18	0.18	6 weeks
DS-190-I-Y-A	1064	2	0.92	0.92	6 weeks
DS-191-I-Y-A	1064	2	0.92	0.92	6 weeks
DS-192-I-Y-A	1064	2	0.96	0.96	6 weeks
DS-193-I-Y-A	1064	2	0.96	0.96	6 weeks
DS-194-I-Y-A	1064	2	1.05	1.05	6 weeks
DS-195-I-Y-A	1064	2	1.05	1.05	6 weeks
DS-196-I-Y-A	1064	2	4.13	4.13	6 weeks
DS-197-I-Y-A	1064	2	5.08	5.08	6 weeks
DS-199-I-Y-A	1064	2	8.72	8.72	6 weeks
DS-207-I-Y-A	1064	2	0.15	0.15	6 weeks
DS-208-I-Y-A	1064	2	0.27	0.27	6 weeks
DS-209-I-Y-A	1064	2	0.15	0.15	6 weeks
DS-210-I-Y-A	1064	2	0.29	0.29	6 weeks
DS-212-I-Y-A	1064	2	0.25	0.25	6 weeks
DS-213-I-Y-A	1064	2	0.038	0.038	6 weeks
DS-216-I-Y-A	1064	2	1.52	1.52	6 weeks
DS-222-I-Y-A	1064	2	2.18	2.18	6 weeks
DS-223-I-Y-A	1064	2	1.35	1.35	6 weeks
DS-225-I-Y-A	1064	2	3.67	3.67	6 weeks
DS-229-I-Y-A	1064	2	2.71	2.71	6 weeks
DS-230-I-Y-A	1064	2	2.44	2.44	6 weeks
DS-233-I-Y-A	1064	2	0.68	0.68	6 weeks
DS-234-I-Y-A	1064	2	5.42	5.42	6 weeks
DS-235-I-Y-A	1064	2	1.79	1.79	6 weeks
DS-237-I-Y-A	1064	2	18.41	18.41	6 weeks
DS-238-I-Y-A	1064	2	1.42	1.42	6 weeks
DS-239-I-Y-A	1064	2	2	2	6 weeks
DS-242-I-Y-A	1064	2	0.11	0.11	6 weeks
DS-243-I-Y-A	1064	2	0.084	0.084	6 weeks
DS-244-I-Y-A	1064	2	0.35	0.35	6 weeks
DS-248-I-Y-A	1064	2	3.59	3.59	6 weeks
DS-250-I-Y-A	1064	2	3.05	3.05	6 weeks
DS-251-I-Y-A	1064	2	2.71	2.71	6 weeks
DS-252-I-Y-A	1064	2	2.54	2.54	6 weeks
DS-255-I-Y-A	1064	2	0.064	0.064	6 weeks
DS-258-I-Y-A	1064	2	0.046	0.046	6 weeks
DS-259-I-Y-A	1064	2	0.046	0.046	6 weeks
DS-260-I-Y-A	1064	2	0.052	0.052	6 weeks
DS-261-I-Y-A	1064	2	0.14	0.14	6 weeks	Suppressed undesired orders
DS-268-I-Y-A	1064	2	0.14	0.14	6 weeks
DS-270-I-Y-A	1064	2	0.54	0.54	6 weeks
DS-271-I-Y-A	1064	2	0.68	0.68	6 weeks
DS-272-I-Y-A	1064	2	18.41	18.41	6 weeks
DS-274-I-Y-A	1064	2	14.38	14.38	6 weeks
DS-276-I-Y-A	1064	2	0.45	0.45	6 weeks
DS-281-I-Y-A	1064	2	14.38	14.38	6 weeks
DS-286-I-Y-A	1064	2	6.86	6.86	6 weeks
MS-107-I-Y-X	1064	7	0.29	1.72	6 weeks
MS-214-I-Y-A	1064	6	0.57	2.86	6 weeks
MS-226-I-Y-X	1064	5	0.5	2	6 weeks
MS-233-I-Y-X	1064	7	0.7	4.19	6 weeks
MS-243-I-Y-A	1064	8	1.48	10.39	6 weeks
MS-244-I-Y-A	1064	10	0.76	6.85	6 weeks
MS-245-I-Y-A	1064	10	0.57	5.14	6 weeks
MS-257-I-Y-A	1064	51	0.057	2.87	6 weeks
MS-263-I-Y-A	1064	4	1.5	4.5	6 weeks
MS-271-I-Y-A	1064	7	0.7	4.21	6 weeks
MS-278-I-Y-X	1064	7	0.95	5.67	6 weeks
MS-279-I-Y-X	1064	7	0.88	5.26	6 weeks
MS-291-I-Y-N	1064	9	0.11	0.91	6 weeks
MS-298-I-Y-X	1064	7	0.19	1.14	6 weeks	Suppressed undesired orders
MS-304-I-Y-A	1064	8	0.045	0.32	6 weeks	Minimum Beam size 8mm
MS-307-I-Y-A	1064	4	5.11	15.37	6 weeks
MS-316-I-Y-A	1064	11	1.2	12.03	6 weeks
MS-320-I-Y-A	1064	8	0.045	0.32	6 weeks	Minimum Beam size 8mm
MS-322-I-Y-A	1064	4	3.4	10.21	6 weeks
MS-331-I-Y-A	1064	10	0.76	6.85	6 weeks **
MS-332-I-Y-A	1064	4	1	3	6 weeks
MS-333-I-Y-A	1064	10	0.76	6.85	6 weeks
MS-355-I-Y-A	1064	4	1.33	4	6 weeks
MS-357-I-Y-A	1064	6	0.21	1.04	6 weeks
MS-398-I-Y-X	1064	5	0.3	1.18	6 weeks
MS-400-I-Y-A	1064	8	0.14	1	6 weeks
MS-408-I-Y-A	1064	12	2.44	27.07	6 weeks
MS-438-I-Y-N	1064	9	0.11	0.91	6 weeks
MS-439-I-Y-X	1064	19	0.15	2.7	6 weeks
MS-454-I-Y-A	1064	15	0.44	6.1	6 weeks
MS-456-I-Y-A	1064	35	0.17	5.92	6 weeks
MS-457-I-Y-A	1064	51	0.17	8.72	6 weeks
MS-453-I-Y-X	1064	9	1.05	8.42	6 weeks
MS-463-I-Y-X	1064	7	0.29	1.72	6 weeks
MS-474-I-Y-A	1064	6	1.2	6	6 weeks
MS-499-I-Y-X	1064	5	1	4.01	6 weeks
MS-501-I-Y-A	1064	6	2.59	12.96	6 weeks
MS-502-I-Y-A	1064	6	2.59	12.96	6 weeks
MS-506-I-Y-A	1064	4	0.5	1.5	6 weeks
MS-513-I-Y-X	1064	321	0.036	11.39	6 weeks
MS-519-I-Y-X	1064	7	0.14	0.86	6 weeks
MS-530-I-Y-A	1064	6	0.084	0.42	6 weeks
MS-531-I-Y-X	1064	5	0.11	0.42	6 weeks
MS-535-I-Y-X	1064	5	0.07	0.28	6 weeks
MS-538-I-Y-A	1064	6	0.096	0.48	6 weeks
MS-539-I-Y-X	1064	5	0.12	0.48	6 weeks
MS-542-I-Y-A	1064	131	0.062	8.07	6 weeks
MS-545-I-Y-A	1064	6	0.054	0.27	6 weeks
MS-548-I-Y-X	1064	7	0.14	0.86	6 weeks
MS-549-I-Y-A	1064	8	0.5	3.52	6 weeks
MS-551-I-Y-A	1064	10	0.3	2.73	6 weeks
MS-554-I-Y-X	1064	7	0.08	0.48	6 weeks
MS-557-I-Y-X	1064	7	0.047	0.28	6 weeks
MS-560-I-Y-A	1064	4	0.1	0.3	6 weeks
MS-575-I-Y-A	1064	32	0.26	7.95	6 weeks
MS-579-I-Y-A	1064	6	0.064	0.32	6 weeks
MS-580-I-Y-X	1064	15	0.54	7.63	6 weeks
MS-589-I-Y-X	1064	11	0.57	5.73	6 weeks
MS-590-I-Y-X	1064	11	0.23	2.29	6 weeks
MS-592-I-Y-X	1064	11	0.11	1.15	6 weeks
MS-605-I-Y-A	1064	8	0.071	0.5	6 weeks
MS-668-I-Y-A	1064	10	0.58	5.22	6 weeks
MS-669-I-Y-A	1064	10	0.29	2.61	6 weeks
MS-675-I-Y-A	1064	9	0.1	0.8	6 weeks
MS-676-I-Y-A	1064	8	4.27	30.27	6 weeks
MS-680-I-Y-A	1064	4	0.23	0.68	6 weeks
MS-681-I-Y-X	1064	5	0.2	0.8	6 weeks
MS-685-I-Y-A	1064	16	0.57	8.55	6 weeks
MS-686-I-Y-A	1064	16	0.79	11.86	6 weeks
MS-705-I-Y-X	1064	33	0.22	7.2	6 weeks
MS-707-I-Y-A	1064	18	0.061	1.05	6 weeks
MS-709-I-Y-A	1064	18	0.062	1.05	6 weeks
MS-710-I-Y-A	1064	18	0.038	0.65	6 weeks
MS-716-I-Y-X	1064	7	1.52	9.14	6 weeks
MS-731-I-Y-A	1064	14	1.23	16	6 weeks
MS-735-I-Y-X	1064	17	0.087	1.39	6 weeks **
MS-736-I-Y-X	1064	17	0.22	3.6	6 weeks
MS-739-I-Y-A	1064	16	0.64	9.67	6 weeks
MS-770-I-Y-A	1064	16	0.25	3.77	6 weeks
MS-772-I-Y-A	1064	4	0.23	0.68	6 weeks
MS-778-I-Y-X	1064	33	0.11	3.64	6 weeks
MS-793-I-Y-A	1064	8	0.071	0.5	6 weeks
TS-003-I-Y-A	1064	3	0.068	0.14	6 weeks
TS-004-I-Y-A	1064	3	0.14	0.27	6 weeks
TS-008-I-Y-A	1064	3	1.27	2.54	6 weeks
TS-015-I-Y-A	1064	3	10.21	20.43	6 weeks
TS-016-I-Y-A	1064	3	0.032	0.064	6 weeks
TS-027-I-Y-A	1064	3	0.076	0.15	6 weeks
TS-028-I-Y-A	1064	3	0.05	0.099	6 weeks
TS-030-I-Y-A	1064	3	10	20.01	6 weeks	Cut-Off 1mm
TS-031-I-Y-A	1064	3	5.09	10.17	6 weeks
TS-200-I-Y-A	1064	3	0.53	1.05	6 weeks
TS-201-I-Y-A	1064	3	0.48	0.96	6 weeks
TS-202-I-Y-A	1064	3	10	20.01	6 weeks
TS-203-I-Y-A	1064	3	0.14	0.27	6 weeks
TS-204-I-Y-A	1064	3	2.44	4.88	6 weeks
TS-205-I-Y-A	1064	3	0.091	0.18	6 weeks
TS-210-I-Y-A	1064	3	15.43	30.85	6 weeks
TS-211-I-Y-A	1064	3	3.81	7.63	6 weeks
TS-212-I-Y-A	1064	3	4.36	8.72	6 weeks
TS-213-I-Y-A	1064	3	2.54	5.08	6 weeks
TS-224-I-Y-A	1064	3	0.46	0.92	6 weeks
TS-230-I-Y-A	1064	3	0.25	0.5	6 weeks
TS-232-I-Y-A	1064	3	0.34	0.68	6 weeks
TS-233-I-Y-A	1064	3	7.19	14.38	6 weeks
TS-234-I-Y-A	1064	3	15.43	30.85	6 weeks
TS-235-I-Y-A	1064	3	2.07	4.13	6 weeks
TS-236-I-Y-A	1064	3	1.83	3.67	6 weeks
TS-238-I-Y-A	1064	3	1.69	3.39	6 weeks
TS-241-I-Y-A	1064	3	1.35	2.71	6 weeks
TS-242-I-Y-A	1064	3	1.22	2.44	6 weeks
TS-243-I-Y-A	1064	3	1.09	2.18	6 weeks
TS-244-I-Y-A	1064	3	0.76	1.52	6 weeks
TS-245-I-Y-A	1064	3	0.67	1.35	6 weeks
TS-246-I-Y-A	1064	3	0.67	1.35	6 weeks
TS-247-I-Y-A	1064	3	0.15	0.29	6 weeks
TS-248-I-Y-A	1064	3	0.13	0.25	6 weeks
TS-249-I-Y-A	1064	3	0.073	0.15	6 weeks
TS-250-I-Y-A	1064	3	0.072	0.14	6 weeks
TS-251-I-Y-A	1064	3	0.059	0.12	6 weeks
TS-252-I-Y-A	1064	3	0.047	0.094	6 weeks
TS-253-I-Y-A	1064	3	0.038	0.076	6 weeks
TS-254-I-Y-A	1064	3	0.019	0.038	6 weeks
TS-255-I-Y-A	1064	3	0.016	0.032	6 weeks
TS-256-I-Y-A	1064	3	0.016	0.032	6 weeks
TS-257-I-Y-A	1064	3	15.43	30.85	6 weeks
TS-258-I-Y-A	1064	3	9.21	18.41	6 weeks
TS-259-I-Y-A	1064	3	0.71	1.42	6 weeks
TS-261-I-Y-A	1064	3	1	2	6 weeks
TS-263-I-Y-A	1064	3	0.2	0.41	6 weeks
TS-264-I-Y-A	1064	3	0.053	0.11	6 weeks
TS-266-I-Y-A	1064	3	0.17	0.35	6 weeks
TS-267-I-Y-A	1064	3	0.091	0.18	6 weeks
TS-268-I-Y-A	1064	3	0.23	0.45	6 weeks
TS-269-I-Y-A	1064	3	0.11	0.23	6 weeks
TS-270-I-Y-A	1064	3	0.023	0.046	6 weeks
TS-274-I-Y-A	1064	3	0.11	0.22	6 weeks
TS-276-I-Y-A	1064	3	0.18	0.36	6 weeks
TS-277-I-Y-A	1064	3	0.068	0.14	6 weeks
TS-278-I-Y-A	1064	3	0.27	0.54	6 weeks
TS-279-I-Y-A	1064	3	2.95	5.91	6 weeks
TS-280-I-Y-A	1064	3	2.05	4.1	6 weeks
TS-283-I-Y-A	1064	3	0.46	0.92	6 weeks
DS-266-I-Y-A	1064	2	0.14	0.14	7 weeks	High Efficiency (HEDS)
DS-267-I-Y-A	1064	2	1.15	1.15	7 weeks	High Efficiency (HEDS)
DS-285-I-Y-A	1064	2	1.63	1.63	7 weeks	High Efficiency (HEDS)
DS-288-I-Y-A	1064	2	1.19	1.19	7 weeks	High Efficiency (HEDS)
DS-289-I-Y-A	1064	2	17.49	17.49	7 weeks	Pattern rotated 45deg
DS-311-I-Y-A	1064	2	7.31	7.31	7 weeks
DS-304-I-Y-A	1064	2	7.31	7.31	7 weeks
MS-021-I-Y-X	1064	15	0.044	0.62	7 weeks	High Efficiency
MS-323-I-Y-X	1064	5	0.046	0.18	7 weeks	High Efficiency
MS-364-I-Y-A	1064	4	0.053	0.16	7 weeks	High Efficiency
MS-396-I-Y-X	1064	9	0.03	0.24	7 weeks	High Efficiency
MS-588-I-Y-A	1064	4	0.29	0.88	7 weeks	High Efficiency
MS-598-I-Y-A	1064	4	0.11	0.32	7 weeks	High Efficiency
MS-629-I-Y-A	1064	4	1	3	7 weeks	High Efficiency
MS-630-I-Y-A	1064	4	0.14	0.43	7 weeks	High Efficiency
MS-631-I-Y-A	1064	4	0.1	0.3	7 weeks	High Efficiency
MS-632-I-Y-A	1064	4	3.4	10.21	7 weeks	High Efficiency
MS-635-I-Y-A	1064	4	1.33	4	7 weeks
MS-636-I-Y-A	1064	8	1.33	9.32	7 weeks
MS-647-I-Y-A	1064	4	1.24	3.73	7 weeks
MS-718-I-Y-X	1064	13	0.06	0.71	7 weeks	High Efficiency
MS-721-I-Y-X	1064	9	0.1	0.82	7 weeks	High Efficiency
MS-732-I-Y-A	1064	4	0.28	0.85	7 weeks	High Efficiency (HEQS)
MS-738-I-Y-A	1064	8	0.096	0.67	7 weeks	High Efficiency
MS-768-I-Y-X	1064	7	0.017	0.1	7 weeks	High Efficiency
MS-777-I-Y-X	1064	9	0.056	0.45	7 weeks	High Efficiency
MS-802-I-Y-A	1064	50	0.27	13.43	7 weeks
DS-226-I-Y-A	1064	2	3.39	3.39	9 weeks
DS-227-I-Y-A	1064	2	3.13	3.13	9 weeks
DS-228-I-Y-A	1064	2	2.9	2.9	9 weeks
DS-249-I-Y-A	1064	2	3.21	3.21	9 weeks
MS-327-I-Y-L	1064	11	1.52	15.29	9 weeks
MS-473-I-Y-A	1064	6	2.43	12.19	9 weeks
MS-505-I-Y-X	1064	85	0.25	21.04	9 weeks
MS-556-I-Y-X	1064	11	0.54	5.44	9 weeks
MS-572-I-Y-X	1064	5	0.42	1.69	9 weeks
MS-628-I-Y-A	1064	8	5.17	36.78	9 weeks
TS-220-I-Y-A	1064	3	7.64	15.29	9 weeks
TS-237-I-Y-A	1064	3	1.69	3.39	9 weeks
TS-239-I-Y-A	1064	3	1.56	3.13	9 weeks
TS-240-I-Y-A	1064	3	1.45	2.9	9 weeks
