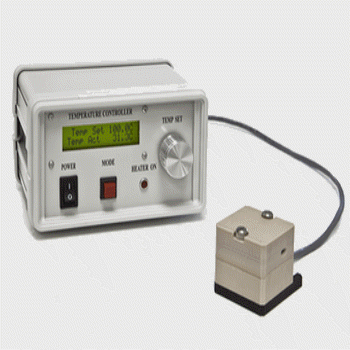

Resistive Based Temperature Stabilizing Oven
The Resistive-based temperature stabilizing oven provides operating temperatures of crystals from room temperature up to 200º C. The temperature controller is a precision instrument that implements Pulse Width Modulation (PWM) control technology to provide accurate temperature control of thermoelectric and resistive heating elements. Specifications:
- Input power: Wall mount AC/DC convertor 9-24 VDC Maximum Output Current: 10A
- Control Temperature Range: 40ºc to 200ºC
- Control Stability: +/-0.2ºC
- Temperature Sensor: 2-wire Pt1000 RTD (included) TE Cooling module up to 30Watt power
- Dimensions (LxWxH) [mm]: 200 x 150 x 85
- Control Output: PI regulator (PID), 40 KHz Pulse Width Modulation (PWM)
How to use oven & Controller
