HOT MIRRORS

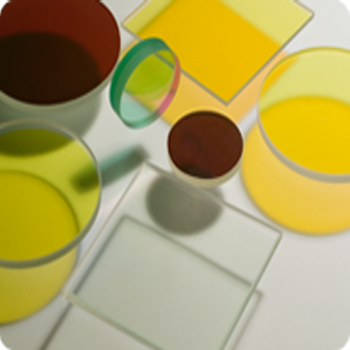

Hot Mirrors perform as their name states: they reflect the heat and transmit the visible light. All of the coatings are classified as hard, first-surface dielectric, and will meet or exceed the specified humidity and abrasion specifications. To prevent cracking or crazing from high heat applications, all coatings are deposited onto a low-expansion material such as borosilicate glass.
BENEFITS

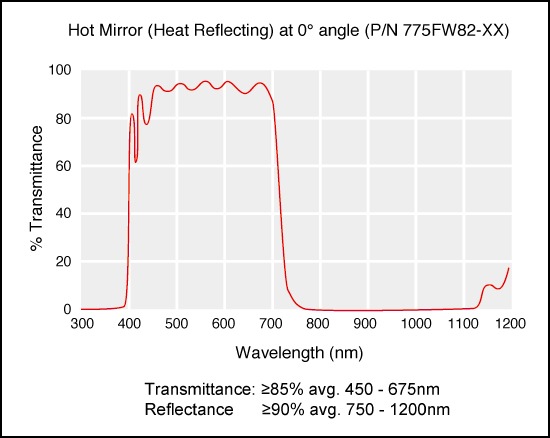

- Transmits visible wavelengths and reflects near-IR heat generating wavelengths
- Prevents cracking or crazing from high-heat applications
COMMON APPLICATIONS
- Projection systems
- Photocopiers
- Surgical and dental lighting
- Film and photographic apparatus
- Illumination systems
- Scientific instruments
Hot Mirror General Specifications
| Thickness: | 3.0mm ±0.5mm |
| Size Tolerance: | +0.0mm/-0.5mm |
| Min. Clear Aperture: | 95% of outside dimension |
| Substrate Material: | Borosilicate glass |
| Flatness: | 5–10 waves per 25mm |
| Parallelism: | 3 arc minutes or better |
| Surface Quality: | 80/50 per MIL-O-13830 |
| Humidity and Abrasion: | Per MIL-C-675A |
| Max. Operating Temperature: | +200°C |
| Mechanical: Unmounted |
하기 링크 참조
https://www.andovercorp.com/products/heat-control-filters/hot-mirrors/
