ULTRAVIOLET COLD MIRRORS
Ultraviolet Cold Mirrors are slightly different than the standard Cold Mirror whereas they efficiently reflect the ultraviolet and transmit the visible and infrared. They are normally used at an angle of 45° and are excellent for applications where one wants to separate the ultraviolet from the visible and near infrared.
BENEFITS
- Reflects the ultraviolet and transmit the visible and infrared
COMMON APPLICATIONS
- Projection systems
- Photocopiers
- Surgical and dental lighting
- Film and photographic apparatus
- Illumination systems
- Scientific instruments

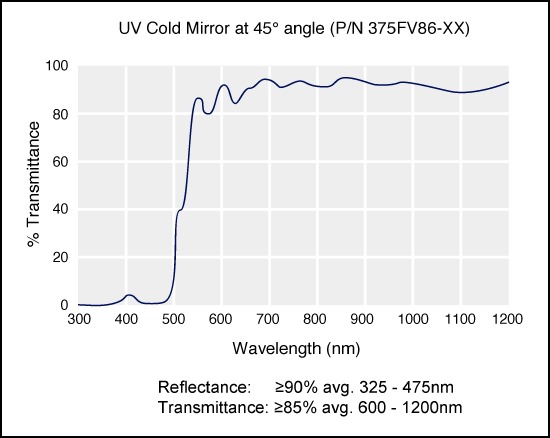

UV Cold Mirror General Specifications
| Thickness: | 3.0mm ±0.5mm |
| Size Tolerance: | +0.0mm/-0.5mm |
| Min. Clear Aperture: | 95% of outside dimension |
| Substrate Material: | Borosilicate glass |
| Flatness: | 5–10 waves per 25mm |
| Parallelism: | 3 arc minutes or better |
| Surface Quality: | 80/50 per MIL-O-13830 |
| Humidity and Abrasion: | Per MIL-C-675A |
| Max. Operating Temperature: | +200°C |
| Mechanical: Unmounted |
하기 링크 참조
https://www.andovercorp.com/products/heat-control-filters/ultraviolet-cold-mirrors/
