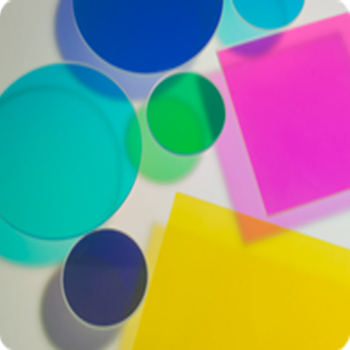

DICHROIC FILTERS
Dichroic filters (color separation filters) are used in a variety of applications where it is necessary to isolate certain regions of the visible spectrum. A few of the more common applications are for use in color enlargers and photocopiers as light balancing filters. They are also very useful in any application where it may be desirable to separate the incident energy into two or more light beams. The following spectral curves are displayed at normal incidence, but for many applications, such as combining colors, it may be desirable to use them in the reflecting mode at a 45° angle of incidence.
All of the coating materials used in these filters produce hard, durable dielectric films which show no signs of degradation with age and use. Unlike the organic dye or gelatin type which will fade with usage these filters are very stable and should not suffer any loss in efficiency with time. These filters are also available in sets. Filters can also be mounted in threaded rings.
BENEFITS
- Provide sharp separation between transmission and reflection
- Spectrally stable at changing temperatures and humidity
- Available in custom designs, colors, angles of incidence, substrates, dimensions, and coatings
COMMON APPLICATIONS
- Fluorescence microscopy
- UV-VIS Irradiation
- Camera imaging
- Stage lighting
- Architectural lighting
- Projection displays
- Color enlargers
- Photocopiers
Custom sizes, substrates and spectral characteristics are available on request. Contact us for a quotation.
| Dichroic Filters General Specifications |
| Thickness: | 1.0mm ±0.25mm |
| Size Tolerance: | +0.0mm/-0.25mm |
| Min. Clear Aperture: | 95% of outside dimension |
| Substrate Material: | Soda lime glass |
| Flatness: | 3–5 waves per 25mm |
| Parallelism: | 3 arc minutes or better |
| Surface Quality: | 80/50 per MIL-C-48497A |
| Humidity and Abrasion: | Per MIL-C-48497A |
| Max. Operating Temp: | +200°C |
| Mechanical: | Unmounted |
하기 링크 참조
