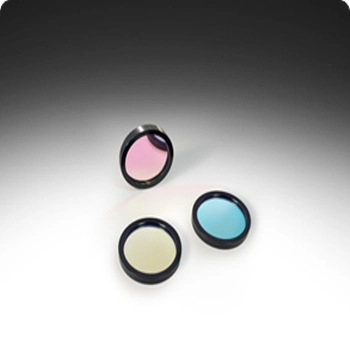

HARD-COATED BROADBAND FILTERS
Our first-surface, hard-coat broadband filters employ magnetron sputtered, hard-oxide coatings deposited on Borosilicate Glass and do not utilize any absorbing filter glasses, making them suitable for high temperature applications. They provide a steep transition from a high, peak transmission to OD4 blocking. Available at standard Raman wavelengths: 488, 514, 532, 633, 785nm, as well as other popular wavelengths. We offer three standard sizes, with custom sizes and ring mounting available on request.
BENEFITS
- Hard, durable, first-surface coatings
- Suitable for high temperature applications
- Available from stock
COMMON APPLICATIONS
- Machine vision
- Biotech instrumentation
- Medical devices
General Specifications
| Thickness: | 3.1±.0.25mm |
| Size Tolerance: | +0.0 / -0.2mm |
| Minimum Clear Aperture: | 95% of outside dimension |
| Substrate Material: | Boroscilicate Glass |
| Flatness: | 3-5 waves |
| Surface Quality: | 80-50 per MIL-C-48497A |
| Humidity and Abrasion: | Per MIL-C-675A |
| Durability: | Per MIL-C-48497A |
| Operating Temperature: | -50°C to +200°C |
| Mechanical: | Unmounted |

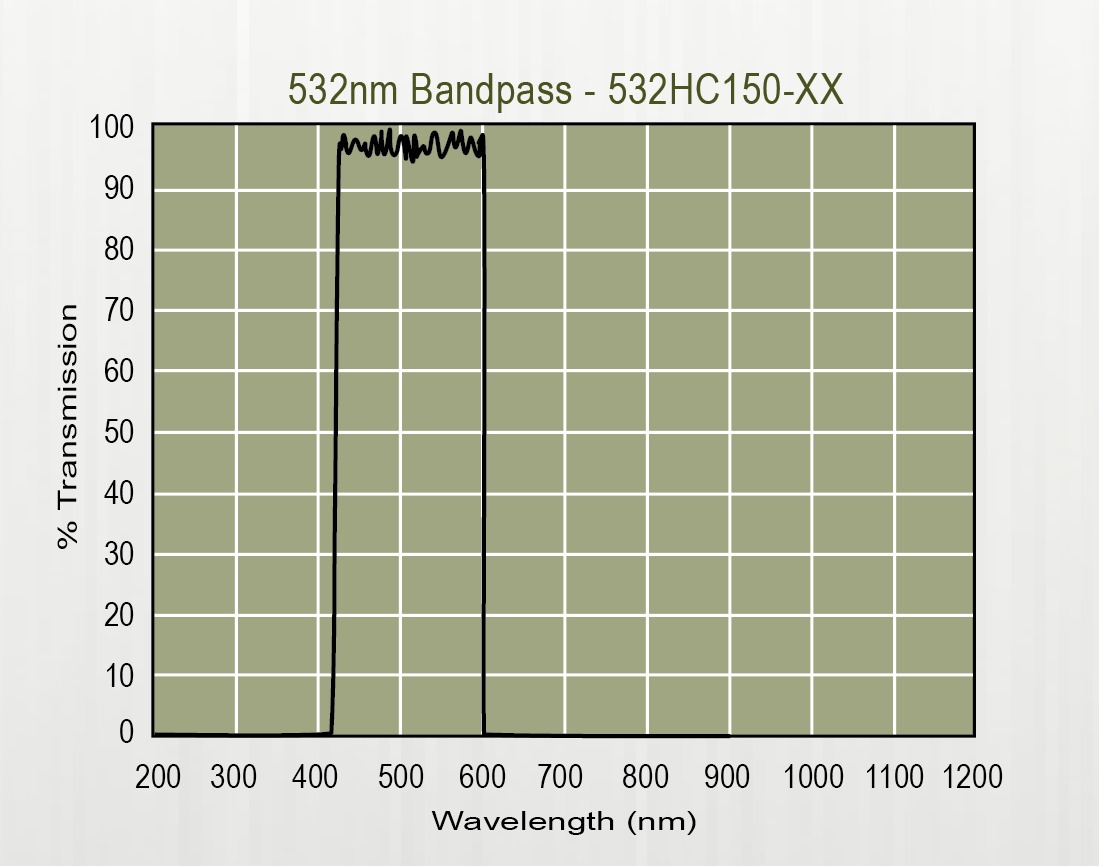

Typical Spectral Curves:
하기 링크 참조
https://www.andovercorp.com/products/bandpass-filters/hard-coated-broadband-filters/
