Advanced laser power attenuators LPA-Av2
⠀⠀⠀⠀⠀⠀⠀⠀⠀
- Integrated controller
- Absolute encoder - no homing required
- High accuracy - ±0.005 deg (less than ± 0.01 % of laser power)
- Resolution - 0.002 deg, 7.2 arcsec, 0.035 mrad
- Fast adjustment - less than 0.2 sec (min to max)
- High damage threshold: up to 10J/cm2 (10 ns @ 1064 nm)
- Adjustable polariser angle
Main features
- Integrated controller
- Absolute encoder - no homing required
- High accuracy - ±0.005 deg (less than ± 0.01 % of laser power)
- Resolution - 0.002 deg, 7.2 arcsec, 0.035 mrad
- Fast adjustment - less than 0.2 sec (min to max)
- High damage threshold: up to 10J/cm2 (10 ns @ 1064 nm)
- Adjustable polariser angle
Application examples
- Laser machining
- Research
- Laser power adjustment

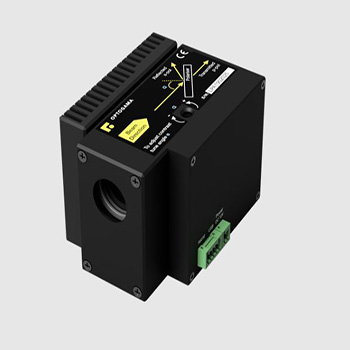

Advanced laser power attenuator LPA-A is a compact motorized device for laser power control with integrated controller and absolute encoder. The LPA-A is produced in the UV, visible and NIR spectral ranges, from 250 nm to 2000 nm. This device is combined with the unique mechanical design which ensures repeatability and high stability of performance. All optical components of the LPA-A are made for high LIDT and provide stable and reliable performance even using them with high power lasers in industrial applications. A secondary laser beam from laser power attenuator unit can be rejected to an external beam dump. The beam dump is used for avoiding any thermal effects or stress in the housing of the LPA-A device.
What’s in the box?
- Integrated motorised laser power attenuator
- Software
- Power supply DC 12V
- USB (1.5 m) cable
Available accessories
- Attachable beam dump <6W with coated protective window
- Separated beam dump <30W
- RS232 cables: 1,8 m, 5 m, 10 m, 15m
- DIN35 rail adapter

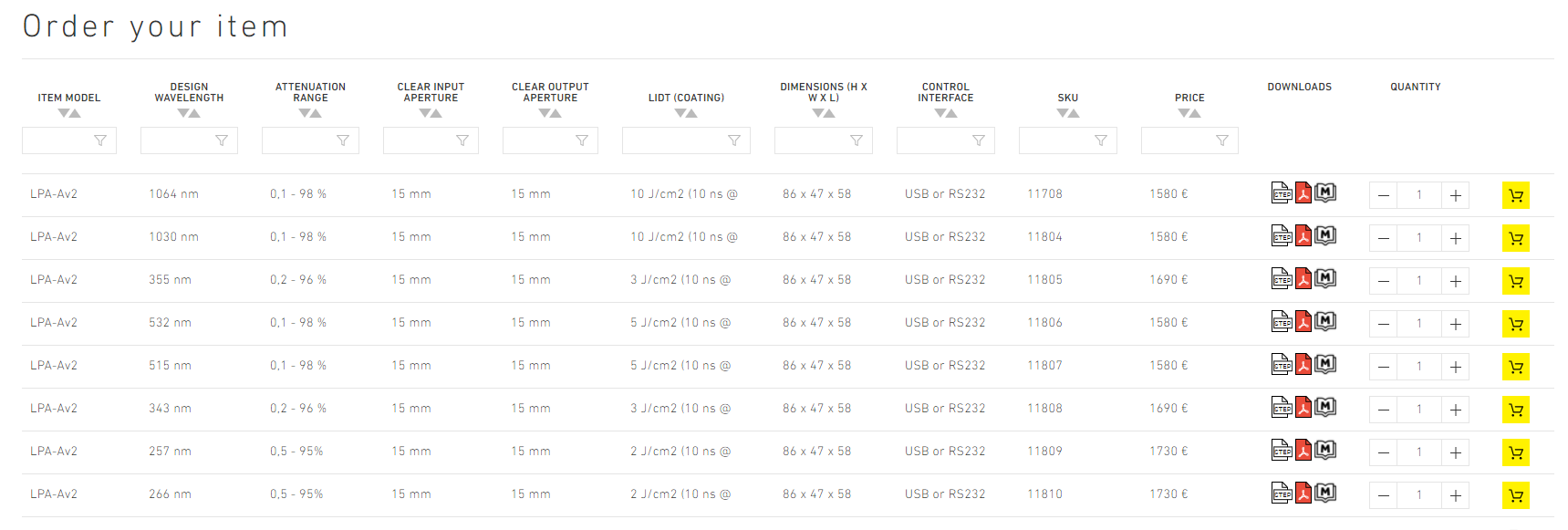

| Motorized laser power attenuator specifications | ||
|---|---|---|
| OPTICAL | Clear input aperture | ⌀15 mm |
| Clear output aperture | ⌀15 mm | |
| Optical configuration | λ/2 ZO Waveplate + High conrast brewster type thin film polarizer | |
| Power attenuation range | 0.1 - 98% | |
| LIDT coating | >10 [J/cm2] (10 ns @ 1064 nm) | |
| Close to open time | < 0.2 sec | |
| Accuracy | ±0.005 deg (± 18 arcsec, 0.087 mrad, less than ±0.01%) | |
| Resolution | 175,543 μsteps in full rotation (0.002 deg, 7.2 arcsec, 0.035 mrad) | |
| Aboslute position encoder | YES | |
| Available coatings | 1064 nm, 1030 nm, 532 nm, 515nm, 355 nm, 343 nm, custom | |
| Bandwidth | 5-10 nm | |
| MECHANICAL | LPA-A mechanical dimensions | 86 x 47 x 58 mm |
| LPA with beam dump mechanical dimensions | 86 x 64 x 58 mm | |
| Controller | Integrated | |
| ELECTRONIC | Communication | Trough ASCII commands (described in manual) |
| Software interface | LPA software | |
| Input voltage | DC 12 V | |
| Control interface | USB, RS232, Ethernet | |
| Transmission speed | up to 115,200 bits/s (RS-232); full speed (USB 2.0) | |
| CONDITIONS | Operating temperature, Celsius | +10 to +40 |
| Mounting holes | M6 on both sides, M4 on bottom side | |
| Beam Dump | Dissipation Power (avg) at room temperature <6W | |
| Housing material | Anodized aluminum | |
Manual:
LPA-A Manual (LPA-A Manual v2.2.pdf)
2D drawings:
LPA-A drawing without beam dump (LPA-A v2.0.pdf)
LPA-A drawing with beam dump (LPA-A v2.0 with BD.pdf)
CAD:
LPA-A with beam dump CAD (LPA-Av2.0 with BD.step)
Reports:
Wavefront distortion measurement report (LPA-Av2.0 WFD measurement .pdf)
Confirmation certificates:
LPA confirmation certificate (CE LPA-Av2.pdf)
Main features
- Integrated controller
- Absolute encoder - no homing required
- High accuracy - ±0.005 deg (less than ± 0.01 % of laser power)
- Resolution - 0.002 deg, 7.2 arcsec, 0.035 mrad
- Fast adjustment - less than 0.2 sec (min to max)
- High damage threshold: up to 10J/cm2 (10 ns @ 1064 nm)
- Adjustable polariser angle
Application examples
- Laser machining
- Research
- Laser power adjustment
Advanced laser power attenuator LPA-A is a compact motorized device for laser power control with integrated controller and absolute encoder. The LPA-A is produced in the UV, visible and NIR spectral ranges, from 250 nm to 2000 nm. This device is combined with the unique mechanical design which ensures repeatability and high stability of performance. All optical components of the LPA-A are made for high LIDT and provide stable and reliable performance even using them with high power lasers in industrial applications. A secondary laser beam from laser power attenuator unit can be rejected to an external beam dump. The beam dump is used for avoiding any thermal effects or stress in the housing of the LPA-A device.
What’s in the box?
- Integrated motorised laser power attenuator
- Software
- Power supply DC 12V
- USB (1.5 m) cable
Available accessories
- Attachable beam dump <6W with coated protective window
- Separated beam dump <30W
- RS232 cables: 1,8 m, 5 m, 10 m, 15m
- DIN35 rail adapter
| Motorized laser power attenuator specifications | ||
|---|---|---|
| OPTICAL | Clear input aperture | ⌀15 mm |
| Clear output aperture | ⌀15 mm | |
| Optical configuration | λ/2 ZO Waveplate + High conrast brewster type thin film polarizer | |
| Power attenuation range | 0.1 - 98% | |
| LIDT coating | >10 [J/cm2] (10 ns @ 1064 nm) | |
| Close to open time | < 0.2 sec | |
| Accuracy | ±0.005 deg (± 18 arcsec, 0.087 mrad, less than ±0.01%) | |
| Resolution | 175,543 μsteps in full rotation (0.002 deg, 7.2 arcsec, 0.035 mrad) | |
| Aboslute position encoder | YES | |
| Available coatings | 1064 nm, 1030 nm, 532 nm, 515nm, 355 nm, 343 nm, custom | |
| Bandwidth | 5-10 nm | |
| MECHANICAL | LPA-A mechanical dimensions | 86 x 47 x 58 mm |
| LPA with beam dump mechanical dimensions | 86 x 64 x 58 mm | |
| Controller | Integrated | |
| ELECTRONIC | Communication | Trough ASCII commands (described in manual) |
| Software interface | LPA software | |
| Input voltage | DC 12 V | |
| Control interface | USB, RS232, Ethernet | |
| Transmission speed | up to 115,200 bits/s (RS-232); full speed (USB 2.0) | |
| CONDITIONS | Operating temperature, Celsius | +10 to +40 |
| Mounting holes | M6 on both sides, M4 on bottom side | |
| Beam Dump | Dissipation Power (avg) at room temperature <6W | |
| Housing material | Anodized aluminum | |
Manual:
LPA-A Manual (LPA-A Manual v2.2.pdf)
2D drawings:
LPA-A drawing without beam dump (LPA-A v2.0.pdf)
LPA-A drawing with beam dump (LPA-A v2.0 with BD.pdf)
CAD:
LPA-A with beam dump CAD (LPA-Av2.0 with BD.step)
Reports:
Wavefront distortion measurement report (LPA-Av2.0 WFD measurement .pdf)
Confirmation certificates:
LPA confirmation certificate (CE LPA-Av2.pdf)
