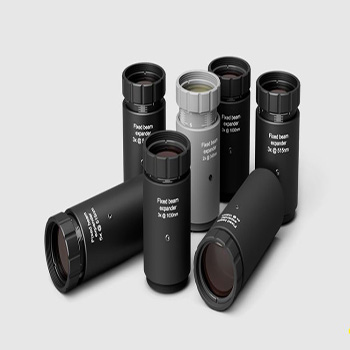

Fixed ratio laser beam expanders FEX
⠀⠀⠀⠀⠀⠀⠀⠀⠀
- Divergence adjustment
- Galilean optical design
- UVFS optical elements
- Grease free mechanical design
- Wide wavelenght adoption - 200 nm to 2 μm
Fixed ratio laser beam expanders FEX
Main features
- Divergence adjustment
- Galilean optical design
- UVFS optical elements
- Grease free mechanical design
- Wide wavelenght adoption - 200 nm to 2 μm
Application examples
- Laser materials processing
- Medical
- Research
Fixed ratio beam expanders FEX series are used to increase laser beam diameter. The FEX model diversity cover the UV, visible and NIR spectral ranges. These compact beam expanders are designed for required wavelength and have divergence adjustability.
All optical elements of beam expanders are made of fused silica with high LIDT coatings and provide stable and reliable performance even using them with high power lasers.

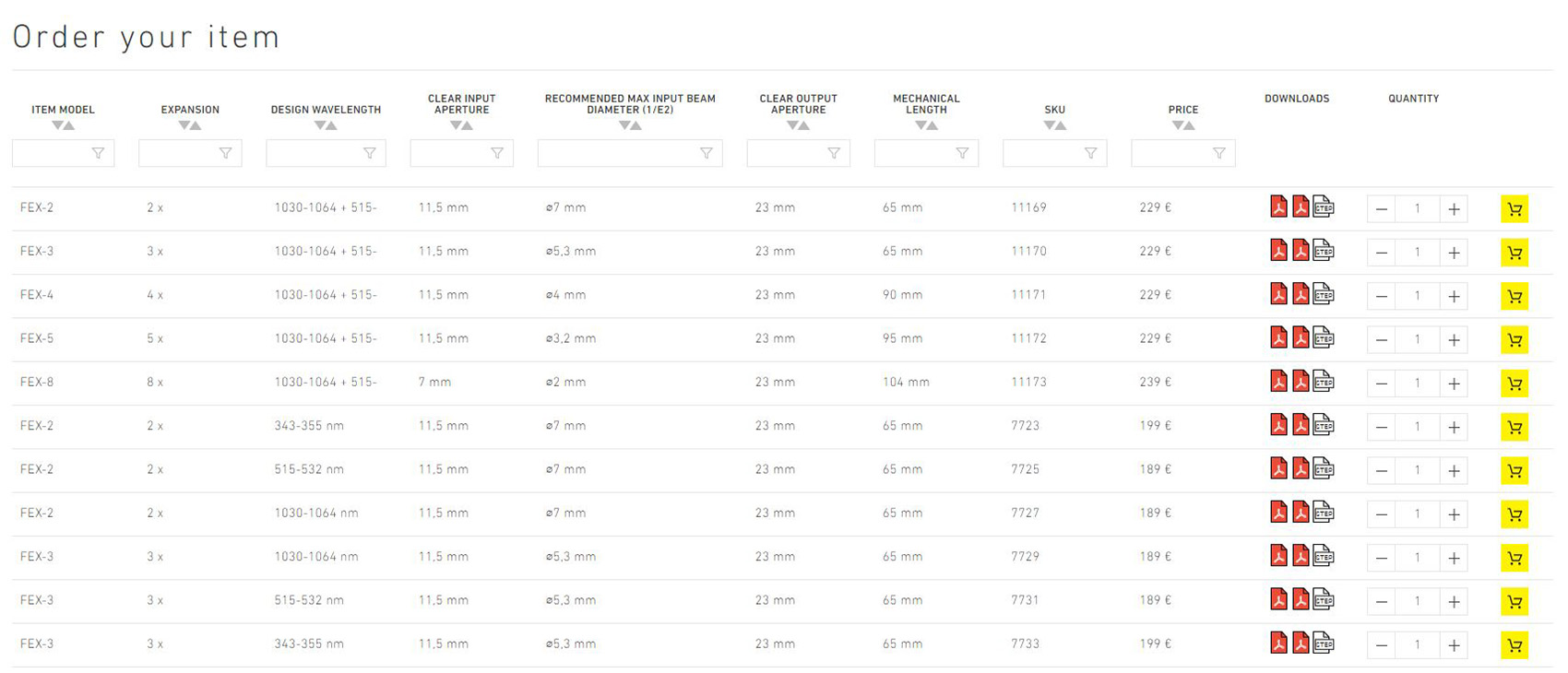

| Fixed ratio laser beam expander specifications | |
|---|---|
| Clear output aperture | 23 mm |
| Divergence | Adjustable |
| Outer diameter | 30 mm |
| Mounting options | SM1 (male, female), ⌀30 mm |
| Transmission | >98% |
| LIDT | 10 J/cm2 (10 ns @1064 nm) |
2D Drawings:
FEX-2x 2D drawing (FEX2X-343.pdf)
FEX-3x 2D drawing (FEX3X-343.pdf)
FEX-4x 2D drawing (FEX4X-343.pdf)
FEX-5x 2D drawing (FEX5X-343.pdf)
FEX-8x 2D drawing (FEX8X-343.pdf)
