640 - 940 nm high power FP lasers
- ・640 nm, 30 mW @50℃, 80 mW @30℃
- ・660 nm, 50/100/120 mW@60℃, 50 mW @70℃
- ・785 nm, 100 mW @70℃
- ・830 nm, 210 mW @70℃
- ・905 nm, 40/100 mW @70℃/li>
- ・940 nm, 285 mW @70℃
- ・TO-56 package
- ・Built-in monitor PD
- ・Applications: Industrial applications, machine vision, leveling instruments, particle counters,
various kinds of sensors

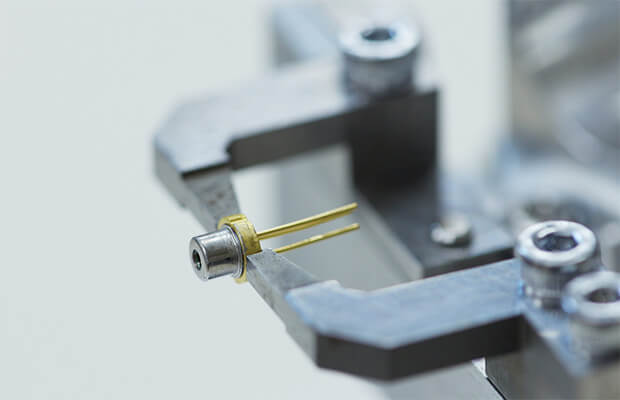

The QLF063x-QLF09x series consists of high-output Fabry Perot lasers with wavelengths of 640, 660, 785, 830, 905 and 940 nm in a TO-CAN (TO56) package with built-in monitor PD. We offer two types of wiring for common anodes or cathodes. These lasers are primarily for industrial applications and are the best choice for machine vision, leveling instruments, particle counters and all kinds of sensors.
| Product model | Wavelength | Light output | LD type | Package | Datasheet | Notes |
|---|
| QLF063A-4030T50 | | | | | | |
| QLF063A-4080T30 | | | | | | |
| QLF063x-AA | | | | | | |
| QLF063x | | | | | | |
| QLF063x-P120 | | | | | | |
| QLF073x | | | | | | |
| QLF083x | | | | | | |
| QLF093x-40B8 | | | | | |
