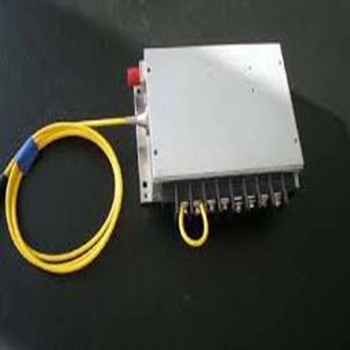

Tri-Wavelength Fiber Coupled LD
⠀⠀⠀⠀⠀⠀⠀⠀⠀
808nm&&980nm&650nm Tri-Wavelength Fiber Coupled Laser Diode Module
12W@808nm & 12W@980nm & 1mw@650nm Tri-Wavelength Output
PD Optional
TEC Cooling Optional
Specifications | WSLB-808/012-980/012-H-A | |
| Wavelength-1 | Wavelength-2 |
Center Wavelength | 808nm | 980nm |
Output Power (CW) | 12W | 12W |
Threshold Current (Typ.) | 0.85A | 0.65A |
Operating Current (Typ.) | 5.2A | 5.5A |
Operating Voltage | 6.3V | 6.9V |
Aiming Beam | 2mw@650nm | |
635nm,405nm, 445nm as Aiming Beam Optional | ||
TEC Cooling | Optional | |
Thermistor (10K) | Optional | |
Photodiodes | Optional | |
Fiber Core Diameter | <400um | |
Fiber Jacket | Stainless Steel Armored Optional | |
Fiber Length | 100cm | |
Connector Type | FC/SMA905 | |
Package | P2 | |
WAVESPECTRUM offer Customized Tri-Wavelength
Fiber Coupled Laser Module:
1) The Power of 808nm : 800mW to 30W Optional
2) The Power of 980nm : 800mW to 30W Optional
3）The Aiming Beam can be 635nm or 650nm
4） Photodiodes Optional
5） TEC Cooling Optional
6) Other Wavelength Optional
Such as 830nm, 880nm, 915nm,940nm, 980nm,
1064nm, 1450nm, 1470nm, 1550nm, etc.)
결제 완료 후 15일 이내에 배송될 예정입니다.
